pacman::p_load("data.table",
"tidyverse",
"dplyr", "tidyr",
"ggplot2", "GGally",
"caret",
"xgboost", # For xgb.importance
"doParallel", "parallel") # For 병렬 처리
registerDoParallel(cores=detectCores()) # 사용할 Core 개수 지정
titanic <- fread("../Titanic.csv") # 데이터 불러오기
titanic %>%
as_tibble13 XGBoost
XGBoost의 장점
- 병렬 처리를 사용하여 Gradient Boosting보다 속도가 빠르다.
- Gradient Boosting보다 정확도가 높다.
- 유연성이 좋다.
- 조기 종료가 가능하다.
- 규제를 통해 과적합을 방지할 수 있다.
XGBoost의 단점
- Gradient Boosting보다 학습시간이 빠를 뿐 다른 기법에 비하면 느리다.
- 초모수(Hyperparameter)가 많다.
- 적절하지 않은 초모수 값을 할당하면 오히려 성능이 나빠질 수 있다.
실습 자료 : 1912년 4월 15일 타이타닉호 침몰 당시 탑승객들의 정보를 기록한 데이터셋이며, 총 11개의 변수를 포함하고 있다. 이 자료에서 Target은
Survived이다.
13.1 데이터 불러오기
# A tibble: 891 × 11
Survived Pclass Name Sex Age SibSp Parch Ticket Fare Cabin Embarked
<int> <int> <chr> <chr> <dbl> <int> <int> <chr> <dbl> <chr> <chr>
1 0 3 Braund, Mr. Owen Harris male 22 1 0 A/5 21171 7.25 "" S
2 1 1 Cumings, Mrs. John Bradley (Florence Briggs Thayer) female 38 1 0 PC 17599 71.3 "C85" C
3 1 3 Heikkinen, Miss. Laina female 26 0 0 STON/O2. 3101282 7.92 "" S
4 1 1 Futrelle, Mrs. Jacques Heath (Lily May Peel) female 35 1 0 113803 53.1 "C123" S
5 0 3 Allen, Mr. William Henry male 35 0 0 373450 8.05 "" S
6 0 3 Moran, Mr. James male NA 0 0 330877 8.46 "" Q
7 0 1 McCarthy, Mr. Timothy J male 54 0 0 17463 51.9 "E46" S
8 0 3 Palsson, Master. Gosta Leonard male 2 3 1 349909 21.1 "" S
9 1 3 Johnson, Mrs. Oscar W (Elisabeth Vilhelmina Berg) female 27 0 2 347742 11.1 "" S
10 1 2 Nasser, Mrs. Nicholas (Adele Achem) female 14 1 0 237736 30.1 "" C
# ℹ 881 more rows13.2 데이터 전처리 I
titanic %<>%
data.frame() %>% # Data Frame 형태로 변환
mutate(Survived = ifelse(Survived == 1, "yes", "no")) # Target을 문자형 변수로 변환
# 1. Convert to Factor
fac.col <- c("Pclass", "Sex",
# Target
"Survived")
titanic <- titanic %>%
mutate_at(fac.col, as.factor) # 범주형으로 변환
glimpse(titanic) # 데이터 구조 확인Rows: 891
Columns: 11
$ Survived <fct> no, yes, yes, yes, no, no, no, no, yes, yes, yes, yes, no, no, no, yes, no, yes, no, yes, no, yes, yes, yes, no, yes, no, no, yes, no, no, yes, yes, no, no, no, yes, no, no, yes, no…
$ Pclass <fct> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3, 2, 2, 3, 1, 3, 3, 3, 1, 3, 3, 1, 1, 3, 2, 1, 1, 3, 3, 3, 3, 3, 2, 3, 2, 3, 3, 3, 3, 3, 3, 3, 3, 1, 2, 1, 1, 2, 3, 2, 3, 3…
$ Name <chr> "Braund, Mr. Owen Harris", "Cumings, Mrs. John Bradley (Florence Briggs Thayer)", "Heikkinen, Miss. Laina", "Futrelle, Mrs. Jacques Heath (Lily May Peel)", "Allen, Mr. William Henry…
$ Sex <fct> male, female, female, female, male, male, male, male, female, female, female, female, male, male, female, female, male, male, female, female, male, male, female, male, female, femal…
$ Age <dbl> 22.0, 38.0, 26.0, 35.0, 35.0, NA, 54.0, 2.0, 27.0, 14.0, 4.0, 58.0, 20.0, 39.0, 14.0, 55.0, 2.0, NA, 31.0, NA, 35.0, 34.0, 15.0, 28.0, 8.0, 38.0, NA, 19.0, NA, NA, 40.0, NA, NA, 66.…
$ SibSp <int> 1, 1, 0, 1, 0, 0, 0, 3, 0, 1, 1, 0, 0, 1, 0, 0, 4, 0, 1, 0, 0, 0, 0, 0, 3, 1, 0, 3, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 2, 1, 1, 1, 0, 1, 0, 0, 1, 0, 2, 1, 4, 0, 1, 1, 0, 0, 0, 0, 1, 5, 0…
$ Parch <int> 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 1, 0, 0, 5, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 5, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 2, 2, 0…
$ Ticket <chr> "A/5 21171", "PC 17599", "STON/O2. 3101282", "113803", "373450", "330877", "17463", "349909", "347742", "237736", "PP 9549", "113783", "A/5. 2151", "347082", "350406", "248706", "38…
$ Fare <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625, 21.0750, 11.1333, 30.0708, 16.7000, 26.5500, 8.0500, 31.2750, 7.8542, 16.0000, 29.1250, 13.0000, 18.0000, 7.2250, 26.0000,…
$ Cabin <chr> "", "C85", "", "C123", "", "", "E46", "", "", "", "G6", "C103", "", "", "", "", "", "", "", "", "", "D56", "", "A6", "", "", "", "C23 C25 C27", "", "", "", "B78", "", "", "", "", ""…
$ Embarked <chr> "S", "C", "S", "S", "S", "Q", "S", "S", "S", "C", "S", "S", "S", "S", "S", "S", "Q", "S", "S", "C", "S", "S", "Q", "S", "S", "S", "C", "S", "Q", "S", "C", "C", "Q", "S", "C", "S", "…# 2. Generate New Variable
titanic <- titanic %>%
mutate(FamSize = SibSp + Parch) # "FamSize = 형제 및 배우자 수 + 부모님 및 자녀 수"로 가족 수를 의미하는 새로운 변수
glimpse(titanic) # 데이터 구조 확인Rows: 891
Columns: 12
$ Survived <fct> no, yes, yes, yes, no, no, no, no, yes, yes, yes, yes, no, no, no, yes, no, yes, no, yes, no, yes, yes, yes, no, yes, no, no, yes, no, no, yes, yes, no, no, no, yes, no, no, yes, no…
$ Pclass <fct> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3, 2, 2, 3, 1, 3, 3, 3, 1, 3, 3, 1, 1, 3, 2, 1, 1, 3, 3, 3, 3, 3, 2, 3, 2, 3, 3, 3, 3, 3, 3, 3, 3, 1, 2, 1, 1, 2, 3, 2, 3, 3…
$ Name <chr> "Braund, Mr. Owen Harris", "Cumings, Mrs. John Bradley (Florence Briggs Thayer)", "Heikkinen, Miss. Laina", "Futrelle, Mrs. Jacques Heath (Lily May Peel)", "Allen, Mr. William Henry…
$ Sex <fct> male, female, female, female, male, male, male, male, female, female, female, female, male, male, female, female, male, male, female, female, male, male, female, male, female, femal…
$ Age <dbl> 22.0, 38.0, 26.0, 35.0, 35.0, NA, 54.0, 2.0, 27.0, 14.0, 4.0, 58.0, 20.0, 39.0, 14.0, 55.0, 2.0, NA, 31.0, NA, 35.0, 34.0, 15.0, 28.0, 8.0, 38.0, NA, 19.0, NA, NA, 40.0, NA, NA, 66.…
$ SibSp <int> 1, 1, 0, 1, 0, 0, 0, 3, 0, 1, 1, 0, 0, 1, 0, 0, 4, 0, 1, 0, 0, 0, 0, 0, 3, 1, 0, 3, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 2, 1, 1, 1, 0, 1, 0, 0, 1, 0, 2, 1, 4, 0, 1, 1, 0, 0, 0, 0, 1, 5, 0…
$ Parch <int> 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 1, 0, 0, 5, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 5, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 2, 2, 0…
$ Ticket <chr> "A/5 21171", "PC 17599", "STON/O2. 3101282", "113803", "373450", "330877", "17463", "349909", "347742", "237736", "PP 9549", "113783", "A/5. 2151", "347082", "350406", "248706", "38…
$ Fare <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625, 21.0750, 11.1333, 30.0708, 16.7000, 26.5500, 8.0500, 31.2750, 7.8542, 16.0000, 29.1250, 13.0000, 18.0000, 7.2250, 26.0000,…
$ Cabin <chr> "", "C85", "", "C123", "", "", "E46", "", "", "", "G6", "C103", "", "", "", "", "", "", "", "", "", "D56", "", "A6", "", "", "", "C23 C25 C27", "", "", "", "B78", "", "", "", "", ""…
$ Embarked <chr> "S", "C", "S", "S", "S", "Q", "S", "S", "S", "C", "S", "S", "S", "S", "S", "S", "Q", "S", "S", "C", "S", "S", "Q", "S", "S", "S", "C", "S", "Q", "S", "C", "C", "Q", "S", "C", "S", "…
$ FamSize <int> 1, 1, 0, 1, 0, 0, 0, 4, 2, 1, 2, 0, 0, 6, 0, 0, 5, 0, 1, 0, 0, 0, 0, 0, 4, 6, 0, 5, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 2, 1, 1, 1, 0, 3, 0, 0, 1, 0, 2, 1, 5, 0, 1, 1, 1, 0, 0, 0, 3, 7, 0…# 3. Select Variables used for Analysis
titanic1 <- titanic %>%
dplyr::select(Survived, Pclass, Sex, Age, Fare, FamSize) # 분석에 사용할 변수 선택
glimpse(titanic1) # 데이터 구조 확인Rows: 891
Columns: 6
$ Survived <fct> no, yes, yes, yes, no, no, no, no, yes, yes, yes, yes, no, no, no, yes, no, yes, no, yes, no, yes, yes, yes, no, yes, no, no, yes, no, no, yes, yes, no, no, no, yes, no, no, yes, no…
$ Pclass <fct> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3, 2, 2, 3, 1, 3, 3, 3, 1, 3, 3, 1, 1, 3, 2, 1, 1, 3, 3, 3, 3, 3, 2, 3, 2, 3, 3, 3, 3, 3, 3, 3, 3, 1, 2, 1, 1, 2, 3, 2, 3, 3…
$ Sex <fct> male, female, female, female, male, male, male, male, female, female, female, female, male, male, female, female, male, male, female, female, male, male, female, male, female, femal…
$ Age <dbl> 22.0, 38.0, 26.0, 35.0, 35.0, NA, 54.0, 2.0, 27.0, 14.0, 4.0, 58.0, 20.0, 39.0, 14.0, 55.0, 2.0, NA, 31.0, NA, 35.0, 34.0, 15.0, 28.0, 8.0, 38.0, NA, 19.0, NA, NA, 40.0, NA, NA, 66.…
$ Fare <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625, 21.0750, 11.1333, 30.0708, 16.7000, 26.5500, 8.0500, 31.2750, 7.8542, 16.0000, 29.1250, 13.0000, 18.0000, 7.2250, 26.0000,…
$ FamSize <int> 1, 1, 0, 1, 0, 0, 0, 4, 2, 1, 2, 0, 0, 6, 0, 0, 5, 0, 1, 0, 0, 0, 0, 0, 4, 6, 0, 5, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 2, 1, 1, 1, 0, 3, 0, 0, 1, 0, 2, 1, 5, 0, 1, 1, 1, 0, 0, 0, 3, 7, 0…13.3 데이터 탐색

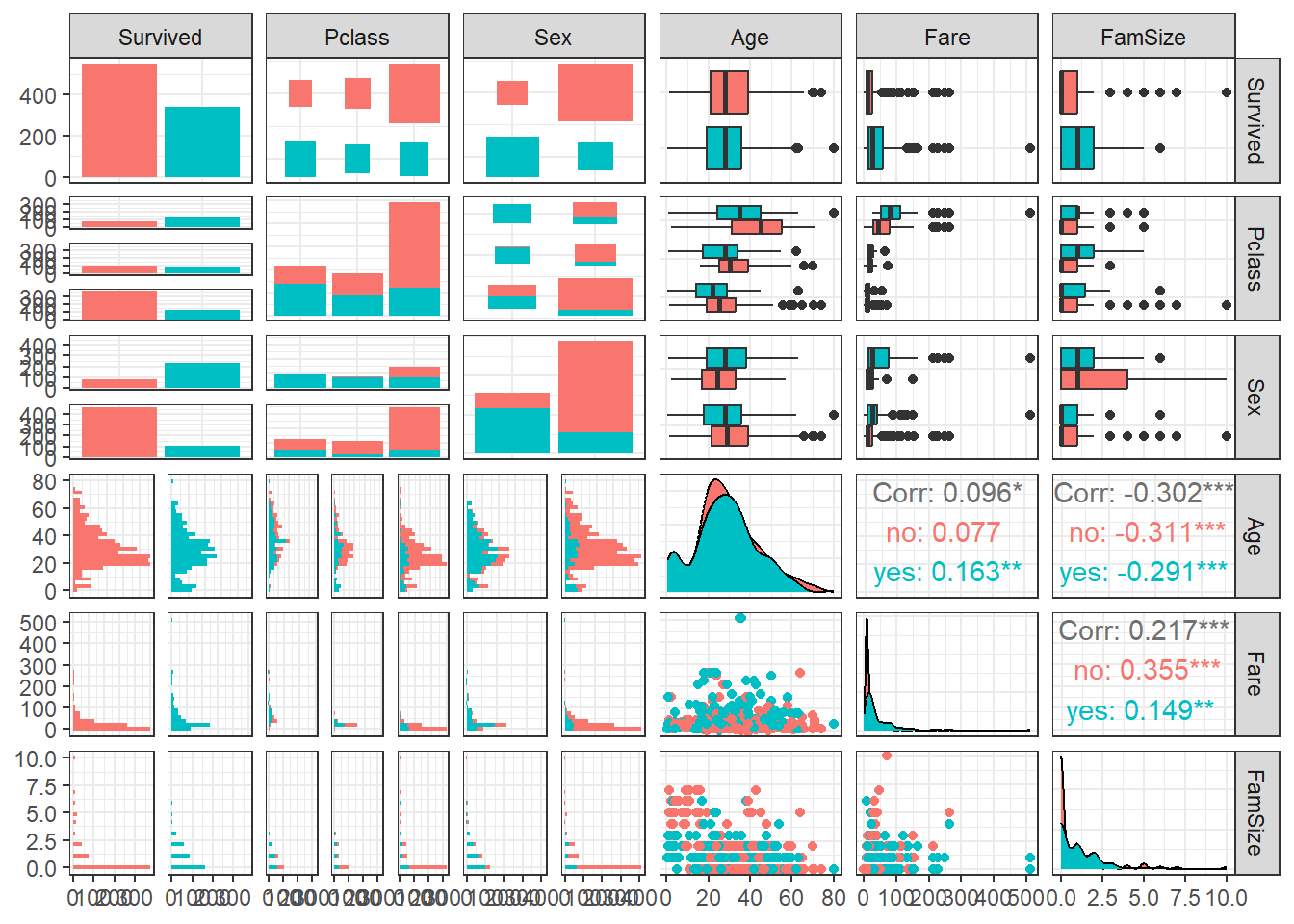

ggpairs(titanic1,
aes(colour = Survived)) + # Target의 범주에 따라 색깔을 다르게 표현
theme_bw()

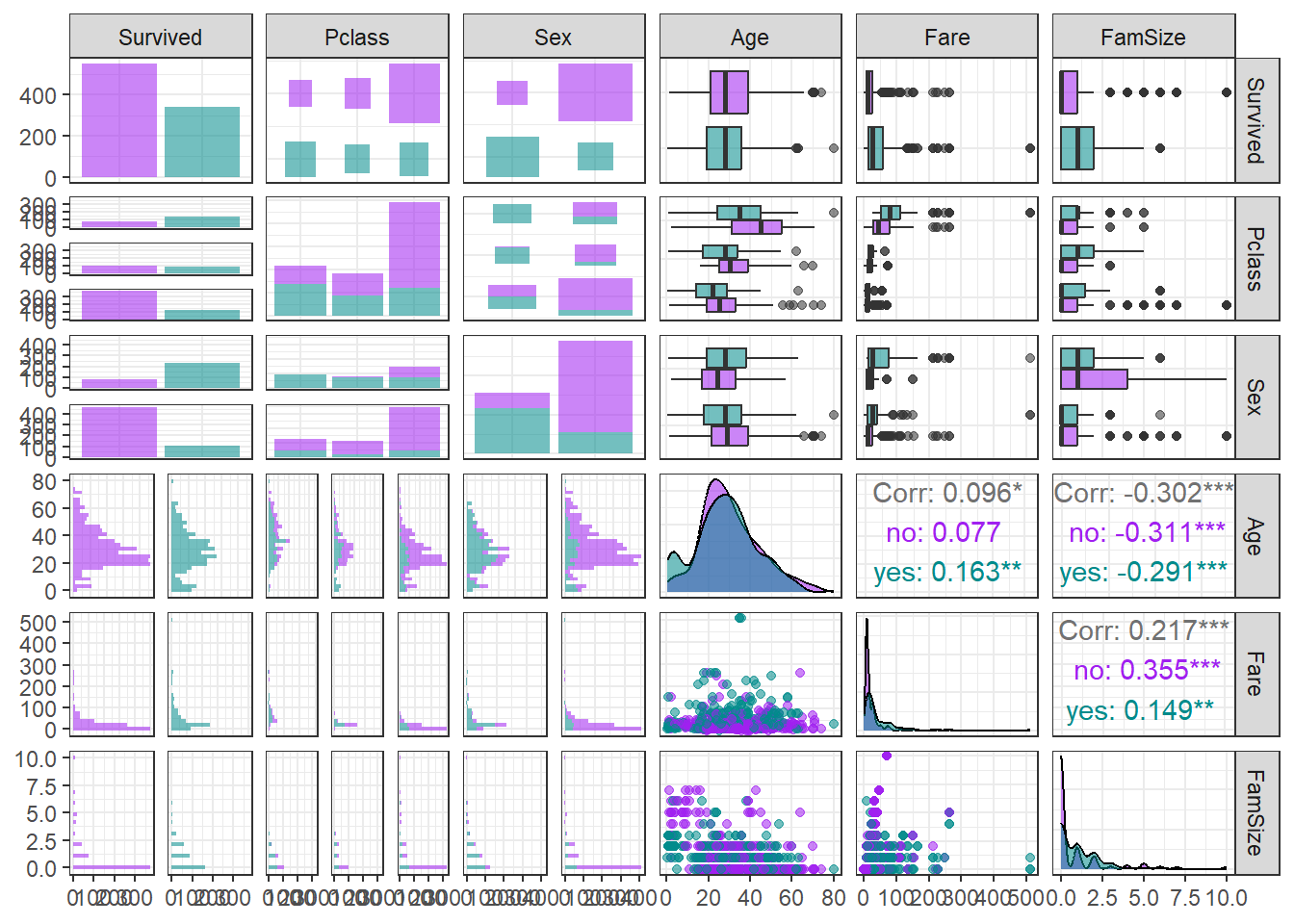

ggpairs(titanic1,
aes(colour = Survived, alpha = 0.8)) + # Target의 범주에 따라 색깔을 다르게 표현
scale_colour_manual(values = c("purple","cyan4")) + # 특정 색깔 지정
scale_fill_manual(values = c("purple","cyan4")) + # 특정 색깔 지정
theme_bw()
13.4 데이터 분할
# Partition (Training Dataset : Test Dataset = 7:3)
y <- titanic1$Survived # Target
set.seed(200)
ind <- createDataPartition(y, p = 0.7, list =T) # Index를 이용하여 7:3으로 분할
titanic.trd <- titanic1[ind$Resample1,] # Training Dataset
titanic.ted <- titanic1[-ind$Resample1,] # Test Dataset13.5 데이터 전처리 II
# Imputation
titanic.trd.Imp <- titanic.trd %>%
mutate(Age = replace_na(Age, mean(Age, na.rm = TRUE))) # 평균으로 결측값 대체
titanic.ted.Imp <- titanic.ted %>%
mutate(Age = replace_na(Age, mean(titanic.trd$Age, na.rm = TRUE))) # Training Dataset을 이용하여 결측값 대체
glimpse(titanic.trd.Imp) # 데이터 구조 확인Rows: 625
Columns: 6
$ Survived <fct> no, yes, yes, no, no, no, yes, yes, yes, yes, no, no, yes, no, yes, no, yes, no, no, no, yes, no, no, yes, yes, no, no, no, no, no, yes, no, no, no, yes, no, yes, no, no, no, yes, n…
$ Pclass <fct> 3, 3, 1, 3, 3, 3, 3, 2, 3, 1, 3, 3, 2, 3, 3, 2, 1, 3, 3, 1, 3, 3, 1, 1, 3, 2, 1, 1, 3, 3, 3, 3, 2, 3, 3, 3, 3, 3, 3, 3, 1, 1, 1, 3, 3, 1, 3, 1, 3, 3, 3, 3, 3, 3, 2, 3, 3, 3, 1, 2, 3…
$ Sex <fct> male, female, female, male, male, male, female, female, female, female, male, female, male, female, female, male, male, female, male, male, female, male, male, female, female, male,…
$ Age <dbl> 22.00000, 26.00000, 35.00000, 35.00000, 29.93737, 2.00000, 27.00000, 14.00000, 4.00000, 58.00000, 39.00000, 14.00000, 29.93737, 31.00000, 29.93737, 35.00000, 28.00000, 8.00000, 29.9…
$ Fare <dbl> 7.2500, 7.9250, 53.1000, 8.0500, 8.4583, 21.0750, 11.1333, 30.0708, 16.7000, 26.5500, 31.2750, 7.8542, 13.0000, 18.0000, 7.2250, 26.0000, 35.5000, 21.0750, 7.2250, 263.0000, 7.8792,…
$ FamSize <int> 1, 0, 1, 0, 0, 4, 2, 1, 2, 0, 6, 0, 0, 1, 0, 0, 0, 4, 0, 5, 0, 0, 0, 1, 0, 0, 1, 1, 0, 2, 1, 1, 1, 0, 0, 1, 0, 2, 1, 5, 1, 1, 0, 7, 0, 0, 5, 0, 2, 7, 1, 0, 0, 0, 2, 0, 0, 0, 0, 0, 3…glimpse(titanic.ted.Imp) # 데이터 구조 확인Rows: 266
Columns: 6
$ Survived <fct> yes, no, no, yes, no, yes, yes, yes, yes, yes, no, no, yes, yes, no, yes, no, yes, yes, no, yes, no, no, no, no, no, no, yes, yes, no, no, no, no, no, no, no, no, no, no, yes, no, n…
$ Pclass <fct> 1, 1, 3, 2, 3, 2, 3, 3, 3, 2, 3, 3, 2, 2, 3, 2, 1, 3, 2, 3, 3, 2, 2, 3, 3, 3, 3, 1, 2, 2, 3, 3, 3, 3, 3, 2, 3, 2, 2, 2, 3, 3, 2, 1, 3, 1, 3, 2, 1, 3, 3, 3, 3, 3, 3, 3, 3, 1, 3, 1, 3…
$ Sex <fct> female, male, male, female, male, male, female, female, male, female, male, male, female, female, male, female, male, male, female, male, female, male, male, male, male, male, male,…
$ Age <dbl> 38.00000, 54.00000, 20.00000, 55.00000, 2.00000, 34.00000, 15.00000, 38.00000, 29.93737, 3.00000, 29.93737, 21.00000, 29.00000, 21.00000, 28.50000, 5.00000, 45.00000, 29.93737, 29.0…
$ Fare <dbl> 71.2833, 51.8625, 8.0500, 16.0000, 29.1250, 13.0000, 8.0292, 31.3875, 7.2292, 41.5792, 8.0500, 7.8000, 26.0000, 10.5000, 7.2292, 27.7500, 83.4750, 15.2458, 10.5000, 8.1583, 7.9250, …
$ FamSize <int> 1, 0, 0, 0, 5, 0, 0, 6, 0, 3, 0, 0, 1, 0, 0, 3, 1, 2, 0, 0, 6, 0, 0, 0, 0, 4, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 6, 2, 1, 0, 0, 1, 0, 2, 0, 0, 0, 0, 1, 0, 0, 1, 5, 2, 5, 0, 5, 0, 4, 0, 6…13.6 모형 훈련
Boosting은 다수의 약한 학습자(간단하면서 성능이 낮은 예측 모형)을 순차적으로 학습하는 앙상블 기법이다. Boosting의 특징은 이전 모형의 오차를 반영하여 다음 모형을 생성하며, 오차를 개선하는 방향으로 학습을 수행한다.
XGBoost는 Extreme Gradient Boosting의 약어로 Gradient Boosting의 단점을 해결하기 위해 제안되었다.
Package "caret"은 통합 API를 통해 R로 기계 학습을 실행할 수 있는 매우 실용적인 방법을 제공한다. Package "caret"에서는 초모수의 최적의 조합을 찾는 방법으로 그리드 검색(Grid Search), 랜덤 검색(Random Search), 직접 탐색 범위 설정이 있다. 여기서는 초모수 eta, max_depth, gamma, colsample_bytree, min_child_weight, subsample, nrounds의 최적의 조합값을 찾기 위해 그리드 검색을 수행하였고, 이를 기반으로 직접 탐색 범위를 설정하였다. 아래는 그리드 검색을 수행하였을 때 결과이다.
fitControl <- trainControl(method = "cv", number = 5, # 5-Fold Cross Validation (5-Fold CV)
allowParallel = TRUE) # 병렬 처리
set.seed(200) # For CV
xgb.fit <- train(Survived ~ ., data = titanic.trd.Imp,
trControl = fitControl ,
method = "xgbTree") Caution! Package "caret"을 통해 "xgbTree"를 수행하는 경우, 함수 train(Target ~ 예측 변수, data)를 사용하면 범주형 예측 변수는 자동적으로 더미 변환이 된다. 범주형 예측 변수에 대해 더미 변환을 수행하고 싶지 않다면 함수 train(x = 예측 변수만 포함하는 데이터셋, y = Target만 포함하는 데이터셋)를 사용한다.

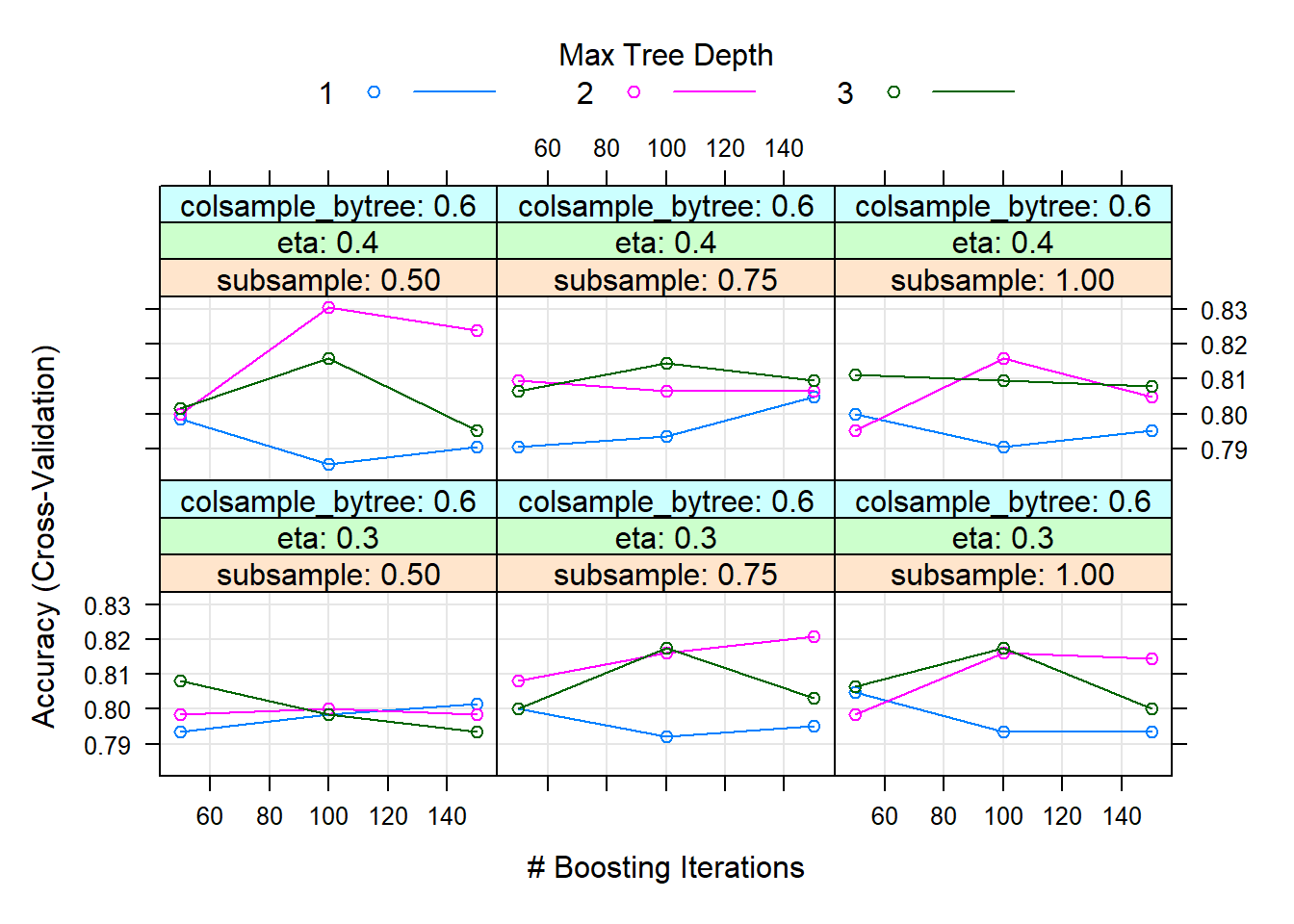

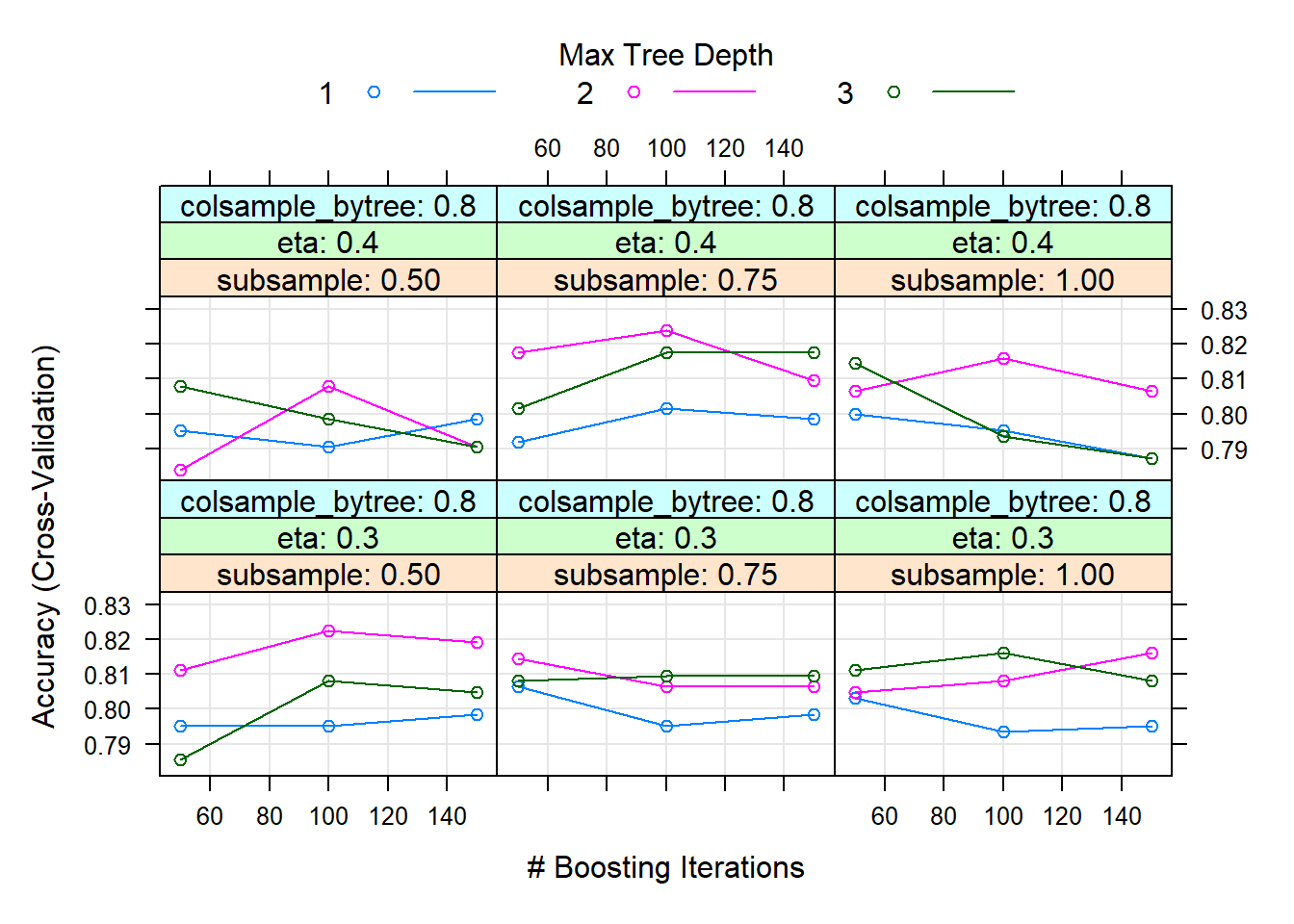

xgb.fiteXtreme Gradient Boosting
625 samples
5 predictor
2 classes: 'no', 'yes'
No pre-processing
Resampling: Cross-Validated (5 fold)
Summary of sample sizes: 500, 500, 500, 500, 500
Resampling results across tuning parameters:
eta max_depth colsample_bytree subsample nrounds Accuracy Kappa
0.3 1 0.6 0.50 50 0.7936 0.5532288
0.3 1 0.6 0.50 100 0.7984 0.5670283
0.3 1 0.6 0.50 150 0.8016 0.5750364
0.3 1 0.6 0.75 50 0.8000 0.5683679
0.3 1 0.6 0.75 100 0.7920 0.5530621
0.3 1 0.6 0.75 150 0.7952 0.5595167
0.3 1 0.6 1.00 50 0.8048 0.5824528
0.3 1 0.6 1.00 100 0.7936 0.5567690
0.3 1 0.6 1.00 150 0.7936 0.5583194
0.3 1 0.8 0.50 50 0.7952 0.5588203
0.3 1 0.8 0.50 100 0.7952 0.5606791
0.3 1 0.8 0.50 150 0.7984 0.5678404
0.3 1 0.8 0.75 50 0.8064 0.5838573
0.3 1 0.8 0.75 100 0.7952 0.5598180
0.3 1 0.8 0.75 150 0.7984 0.5680711
0.3 1 0.8 1.00 50 0.8032 0.5776070
0.3 1 0.8 1.00 100 0.7936 0.5567448
0.3 1 0.8 1.00 150 0.7952 0.5608127
0.3 2 0.6 0.50 50 0.7984 0.5659624
0.3 2 0.6 0.50 100 0.8000 0.5681795
0.3 2 0.6 0.50 150 0.7984 0.5655375
0.3 2 0.6 0.75 50 0.8080 0.5840128
0.3 2 0.6 0.75 100 0.8160 0.6017267
0.3 2 0.6 0.75 150 0.8208 0.6148647
0.3 2 0.6 1.00 50 0.7984 0.5642618
0.3 2 0.6 1.00 100 0.8160 0.6050330
0.3 2 0.6 1.00 150 0.8144 0.6035449
0.3 2 0.8 0.50 50 0.8112 0.5928300
0.3 2 0.8 0.50 100 0.8224 0.6163725
0.3 2 0.8 0.50 150 0.8192 0.6108362
0.3 2 0.8 0.75 50 0.8144 0.5988434
0.3 2 0.8 0.75 100 0.8064 0.5841983
0.3 2 0.8 0.75 150 0.8064 0.5869076
0.3 2 0.8 1.00 50 0.8048 0.5784530
0.3 2 0.8 1.00 100 0.8080 0.5916713
0.3 2 0.8 1.00 150 0.8160 0.6074775
0.3 3 0.6 0.50 50 0.8080 0.5855842
0.3 3 0.6 0.50 100 0.7984 0.5677822
0.3 3 0.6 0.50 150 0.7936 0.5622879
0.3 3 0.6 0.75 50 0.8000 0.5690285
0.3 3 0.6 0.75 100 0.8176 0.6067952
0.3 3 0.6 0.75 150 0.8032 0.5768480
0.3 3 0.6 1.00 50 0.8064 0.5846185
0.3 3 0.6 1.00 100 0.8176 0.6114240
0.3 3 0.6 1.00 150 0.8000 0.5742391
0.3 3 0.8 0.50 50 0.7856 0.5416109
0.3 3 0.8 0.50 100 0.8080 0.5909694
0.3 3 0.8 0.50 150 0.8048 0.5833752
0.3 3 0.8 0.75 50 0.8080 0.5848742
0.3 3 0.8 0.75 100 0.8096 0.5922924
0.3 3 0.8 0.75 150 0.8096 0.5944031
0.3 3 0.8 1.00 50 0.8112 0.5955304
0.3 3 0.8 1.00 100 0.8160 0.6095351
0.3 3 0.8 1.00 150 0.8080 0.5923806
0.4 1 0.6 0.50 50 0.7984 0.5654428
0.4 1 0.6 0.50 100 0.7856 0.5417550
0.4 1 0.6 0.50 150 0.7904 0.5519082
0.4 1 0.6 0.75 50 0.7904 0.5527988
0.4 1 0.6 0.75 100 0.7936 0.5588007
0.4 1 0.6 0.75 150 0.8048 0.5850564
0.4 1 0.6 1.00 50 0.8000 0.5708883
0.4 1 0.6 1.00 100 0.7904 0.5508317
0.4 1 0.6 1.00 150 0.7952 0.5638414
0.4 1 0.8 0.50 50 0.7952 0.5596631
0.4 1 0.8 0.50 100 0.7904 0.5501620
0.4 1 0.8 0.50 150 0.7984 0.5681207
0.4 1 0.8 0.75 50 0.7920 0.5567217
0.4 1 0.8 0.75 100 0.8016 0.5713368
0.4 1 0.8 0.75 150 0.7984 0.5700493
0.4 1 0.8 1.00 50 0.8000 0.5706676
0.4 1 0.8 1.00 100 0.7952 0.5627966
0.4 1 0.8 1.00 150 0.7872 0.5463291
0.4 2 0.6 0.50 50 0.8000 0.5686933
0.4 2 0.6 0.50 100 0.8304 0.6363294
0.4 2 0.6 0.50 150 0.8240 0.6250907
0.4 2 0.6 0.75 50 0.8096 0.5875135
0.4 2 0.6 0.75 100 0.8064 0.5837448
0.4 2 0.6 0.75 150 0.8064 0.5859264
0.4 2 0.6 1.00 50 0.7952 0.5598551
0.4 2 0.6 1.00 100 0.8160 0.6065912
0.4 2 0.6 1.00 150 0.8048 0.5836471
0.4 2 0.8 0.50 50 0.7840 0.5373904
0.4 2 0.8 0.50 100 0.8080 0.5909284
0.4 2 0.8 0.50 150 0.7904 0.5520807
0.4 2 0.8 0.75 50 0.8176 0.6082601
0.4 2 0.8 0.75 100 0.8240 0.6230251
0.4 2 0.8 0.75 150 0.8096 0.5938767
0.4 2 0.8 1.00 50 0.8064 0.5852386
0.4 2 0.8 1.00 100 0.8160 0.6091437
0.4 2 0.8 1.00 150 0.8064 0.5882986
0.4 3 0.6 0.50 50 0.8016 0.5800843
0.4 3 0.6 0.50 100 0.8160 0.6076108
0.4 3 0.6 0.50 150 0.7952 0.5644753
0.4 3 0.6 0.75 50 0.8064 0.5851191
0.4 3 0.6 0.75 100 0.8144 0.6048904
0.4 3 0.6 0.75 150 0.8096 0.5969159
0.4 3 0.6 1.00 50 0.8112 0.5967624
0.4 3 0.6 1.00 100 0.8096 0.5948556
0.4 3 0.6 1.00 150 0.8080 0.5925659
0.4 3 0.8 0.50 50 0.8080 0.5919065
0.4 3 0.8 0.50 100 0.7984 0.5685959
0.4 3 0.8 0.50 150 0.7904 0.5575082
0.4 3 0.8 0.75 50 0.8016 0.5746439
0.4 3 0.8 0.75 100 0.8176 0.6118326
0.4 3 0.8 0.75 150 0.8176 0.6124456
0.4 3 0.8 1.00 50 0.8144 0.6005889
0.4 3 0.8 1.00 100 0.7936 0.5584222
0.4 3 0.8 1.00 150 0.7872 0.5478133
Tuning parameter 'gamma' was held constant at a value of 0
Tuning parameter 'min_child_weight' was held constant at a value of 1
Accuracy was used to select the optimal model using the largest value.
The final values used for the model were nrounds = 100, max_depth = 2, eta = 0.4, gamma = 0, colsample_bytree = 0.6, min_child_weight = 1 and subsample = 0.5.plot(xgb.fit) # Plot
Result! 랜덤하게 결정된 초모수 값을 조합하여 만든 108개의 초모수 조합값 (eta, max_depth, gamma, colsample_bytree, min_child_weight, subsample, nrounds)에 대한 정확도를 보여주며, (eta = 0.4, max_depth = 2, gamma = 0, colsample_bytree = 0.6, min_child_weight = 1, subsample = 0.5, nrounds = 100)일 때 정확도가 가장 높은 것을 알 수 있다. 따라서 그리드 검색을 통해 찾은 최적의 초모수 조합값 (eta = 0.4, max_depth = 2, gamma = 0, colsample_bytree = 0.6, min_child_weight = 1, subsample = 0.5, nrounds = 100) 근처의 값들을 탐색 범위로 설정하여 훈련을 다시 수행할 수 있다.
customGrid <- expand.grid(eta = seq(0.3, 0.5, by = 0.1), # eta의 탐색 범위
max_depth = seq(1, 3, by = 1), # max_depth의 탐색 범위
gamma = seq(0.1, 1, by = 0.5), # gamma의 탐색 범위
colsample_bytree = seq(0.5, 0.7, by = 0.1), # colsample_bytree의 탐색 범위
min_child_weight = seq(1, 2, by = 1), # min_child_weight의 탐색 범위
subsample = seq(0.45, 0.55, by = 0.1), # subsample의 탐색 범위
nrounds = seq(99, 101, by = 1)) # nrounds의 탐색 범위
set.seed(200) # For CV
xgb.tune.fit <- train(Survived ~ ., data = titanic.trd.Imp,
trControl = fitControl ,
method = "xgbTree",
tuneGrid = customGrid)
xgb.tune.fiteXtreme Gradient Boosting
625 samples
5 predictor
2 classes: 'no', 'yes'
No pre-processing
Resampling: Cross-Validated (5 fold)
Summary of sample sizes: 500, 500, 500, 500, 500
Resampling results across tuning parameters:
eta max_depth gamma colsample_bytree min_child_weight subsample nrounds Accuracy Kappa
0.3 1 0.1 0.5 1 0.45 99 0.8064 0.5838129
0.3 1 0.1 0.5 1 0.45 100 0.8048 0.5814521
0.3 1 0.1 0.5 1 0.45 101 0.8032 0.5774806
0.3 1 0.1 0.5 1 0.55 99 0.8032 0.5775456
0.3 1 0.1 0.5 1 0.55 100 0.8080 0.5881485
0.3 1 0.1 0.5 1 0.55 101 0.8048 0.5801318
0.3 1 0.1 0.5 2 0.45 99 0.8080 0.5877026
0.3 1 0.1 0.5 2 0.45 100 0.8064 0.5837763
0.3 1 0.1 0.5 2 0.45 101 0.8128 0.5982911
0.3 1 0.1 0.5 2 0.55 99 0.8000 0.5711714
0.3 1 0.1 0.5 2 0.55 100 0.8016 0.5743475
0.3 1 0.1 0.5 2 0.55 101 0.7968 0.5657900
0.3 1 0.1 0.6 1 0.45 99 0.8048 0.5834690
0.3 1 0.1 0.6 1 0.45 100 0.8032 0.5813071
0.3 1 0.1 0.6 1 0.45 101 0.8016 0.5772513
0.3 1 0.1 0.6 1 0.55 99 0.8048 0.5792279
0.3 1 0.1 0.6 1 0.55 100 0.8080 0.5846818
0.3 1 0.1 0.6 1 0.55 101 0.8048 0.5800795
0.3 1 0.1 0.6 2 0.45 99 0.7952 0.5604895
0.3 1 0.1 0.6 2 0.45 100 0.7936 0.5553880
0.3 1 0.1 0.6 2 0.45 101 0.7920 0.5536102
0.3 1 0.1 0.6 2 0.55 99 0.7920 0.5529005
0.3 1 0.1 0.6 2 0.55 100 0.7888 0.5460309
0.3 1 0.1 0.6 2 0.55 101 0.7872 0.5438934
0.3 1 0.1 0.7 1 0.45 99 0.8032 0.5753638
0.3 1 0.1 0.7 1 0.45 100 0.8000 0.5679317
0.3 1 0.1 0.7 1 0.45 101 0.8032 0.5744805
0.3 1 0.1 0.7 1 0.55 99 0.7968 0.5628348
0.3 1 0.1 0.7 1 0.55 100 0.7952 0.5588770
0.3 1 0.1 0.7 1 0.55 101 0.7968 0.5619139
0.3 1 0.1 0.7 2 0.45 99 0.7920 0.5530767
0.3 1 0.1 0.7 2 0.45 100 0.7920 0.5527731
0.3 1 0.1 0.7 2 0.45 101 0.7920 0.5525992
0.3 1 0.1 0.7 2 0.55 99 0.7936 0.5540954
0.3 1 0.1 0.7 2 0.55 100 0.8000 0.5666202
0.3 1 0.1 0.7 2 0.55 101 0.8032 0.5739548
0.3 1 0.6 0.5 1 0.45 99 0.7936 0.5564740
0.3 1 0.6 0.5 1 0.45 100 0.7952 0.5581319
0.3 1 0.6 0.5 1 0.45 101 0.7968 0.5605810
0.3 1 0.6 0.5 1 0.55 99 0.7968 0.5633042
0.3 1 0.6 0.5 1 0.55 100 0.8000 0.5719791
0.3 1 0.6 0.5 1 0.55 101 0.7968 0.5641198
0.3 1 0.6 0.5 2 0.45 99 0.8016 0.5737968
0.3 1 0.6 0.5 2 0.45 100 0.7952 0.5585167
0.3 1 0.6 0.5 2 0.45 101 0.7920 0.5504370
0.3 1 0.6 0.5 2 0.55 99 0.8048 0.5790185
0.3 1 0.6 0.5 2 0.55 100 0.8080 0.5852328
0.3 1 0.6 0.5 2 0.55 101 0.8000 0.5681826
0.3 1 0.6 0.6 1 0.45 99 0.7936 0.5563138
0.3 1 0.6 0.6 1 0.45 100 0.7936 0.5569457
0.3 1 0.6 0.6 1 0.45 101 0.7904 0.5508814
0.3 1 0.6 0.6 1 0.55 99 0.7824 0.5305113
0.3 1 0.6 0.6 1 0.55 100 0.7856 0.5374017
0.3 1 0.6 0.6 1 0.55 101 0.7904 0.5474332
0.3 1 0.6 0.6 2 0.45 99 0.8032 0.5756352
0.3 1 0.6 0.6 2 0.45 100 0.8080 0.5844591
0.3 1 0.6 0.6 2 0.45 101 0.8032 0.5747264
0.3 1 0.6 0.6 2 0.55 99 0.7904 0.5503540
0.3 1 0.6 0.6 2 0.55 100 0.7920 0.5527563
0.3 1 0.6 0.6 2 0.55 101 0.7920 0.5511523
0.3 1 0.6 0.7 1 0.45 99 0.7984 0.5650223
0.3 1 0.6 0.7 1 0.45 100 0.8048 0.5805166
0.3 1 0.6 0.7 1 0.45 101 0.8016 0.5747020
0.3 1 0.6 0.7 1 0.55 99 0.7936 0.5594105
0.3 1 0.6 0.7 1 0.55 100 0.7984 0.5674121
0.3 1 0.6 0.7 1 0.55 101 0.7952 0.5596154
0.3 1 0.6 0.7 2 0.45 99 0.8064 0.5827225
0.3 1 0.6 0.7 2 0.45 100 0.8032 0.5757635
0.3 1 0.6 0.7 2 0.45 101 0.7968 0.5641691
0.3 1 0.6 0.7 2 0.55 99 0.8032 0.5760319
0.3 1 0.6 0.7 2 0.55 100 0.8032 0.5759375
0.3 1 0.6 0.7 2 0.55 101 0.8064 0.5836489
0.3 2 0.1 0.5 1 0.45 99 0.7984 0.5659478
0.3 2 0.1 0.5 1 0.45 100 0.8000 0.5700399
0.3 2 0.1 0.5 1 0.45 101 0.7984 0.5646069
0.3 2 0.1 0.5 1 0.55 99 0.8032 0.5767185
0.3 2 0.1 0.5 1 0.55 100 0.8048 0.5810878
0.3 2 0.1 0.5 1 0.55 101 0.8016 0.5721704
0.3 2 0.1 0.5 2 0.45 99 0.8128 0.5953302
0.3 2 0.1 0.5 2 0.45 100 0.8176 0.6047191
0.3 2 0.1 0.5 2 0.45 101 0.8144 0.5969698
0.3 2 0.1 0.5 2 0.55 99 0.8016 0.5733767
0.3 2 0.1 0.5 2 0.55 100 0.8112 0.5946178
0.3 2 0.1 0.5 2 0.55 101 0.8096 0.5907259
0.3 2 0.1 0.6 1 0.45 99 0.8096 0.5936793
0.3 2 0.1 0.6 1 0.45 100 0.8032 0.5783268
0.3 2 0.1 0.6 1 0.45 101 0.8048 0.5820366
0.3 2 0.1 0.6 1 0.55 99 0.8144 0.5984934
0.3 2 0.1 0.6 1 0.55 100 0.8080 0.5845359
0.3 2 0.1 0.6 1 0.55 101 0.8144 0.5978417
0.3 2 0.1 0.6 2 0.45 99 0.8096 0.5899417
0.3 2 0.1 0.6 2 0.45 100 0.8048 0.5774758
0.3 2 0.1 0.6 2 0.45 101 0.8064 0.5823657
0.3 2 0.1 0.6 2 0.55 99 0.8032 0.5752657
0.3 2 0.1 0.6 2 0.55 100 0.8032 0.5759264
0.3 2 0.1 0.6 2 0.55 101 0.8080 0.5847341
0.3 2 0.1 0.7 1 0.45 99 0.8064 0.5824642
0.3 2 0.1 0.7 1 0.45 100 0.8016 0.5732246
0.3 2 0.1 0.7 1 0.45 101 0.8048 0.5791015
0.3 2 0.1 0.7 1 0.55 99 0.8144 0.6017616
0.3 2 0.1 0.7 1 0.55 100 0.8096 0.5906118
0.3 2 0.1 0.7 1 0.55 101 0.8112 0.5930176
0.3 2 0.1 0.7 2 0.45 99 0.8016 0.5705171
0.3 2 0.1 0.7 2 0.45 100 0.8016 0.5693442
0.3 2 0.1 0.7 2 0.45 101 0.7984 0.5639016
0.3 2 0.1 0.7 2 0.55 99 0.8032 0.5785788
0.3 2 0.1 0.7 2 0.55 100 0.8048 0.5823144
0.3 2 0.1 0.7 2 0.55 101 0.8112 0.5972521
0.3 2 0.6 0.5 1 0.45 99 0.8112 0.5959995
0.3 2 0.6 0.5 1 0.45 100 0.8016 0.5752524
0.3 2 0.6 0.5 1 0.45 101 0.8048 0.5823796
0.3 2 0.6 0.5 1 0.55 99 0.8048 0.5797549
0.3 2 0.6 0.5 1 0.55 100 0.8064 0.5841294
0.3 2 0.6 0.5 1 0.55 101 0.8032 0.5767271
0.3 2 0.6 0.5 2 0.45 99 0.8048 0.5787174
0.3 2 0.6 0.5 2 0.45 100 0.8064 0.5823871
0.3 2 0.6 0.5 2 0.45 101 0.8144 0.6004399
0.3 2 0.6 0.5 2 0.55 99 0.8224 0.6144061
0.3 2 0.6 0.5 2 0.55 100 0.8176 0.6050864
0.3 2 0.6 0.5 2 0.55 101 0.8144 0.5971932
0.3 2 0.6 0.6 1 0.45 99 0.8080 0.5874888
0.3 2 0.6 0.6 1 0.45 100 0.8048 0.5812470
0.3 2 0.6 0.6 1 0.45 101 0.8048 0.5812451
0.3 2 0.6 0.6 1 0.55 99 0.8112 0.5957263
0.3 2 0.6 0.6 1 0.55 100 0.8064 0.5839784
0.3 2 0.6 0.6 1 0.55 101 0.8048 0.5799662
0.3 2 0.6 0.6 2 0.45 99 0.8080 0.5881105
0.3 2 0.6 0.6 2 0.45 100 0.8160 0.6046260
0.3 2 0.6 0.6 2 0.45 101 0.8192 0.6111008
0.3 2 0.6 0.6 2 0.55 99 0.8160 0.6028799
0.3 2 0.6 0.6 2 0.55 100 0.8160 0.6018224
0.3 2 0.6 0.6 2 0.55 101 0.8048 0.5770912
0.3 2 0.6 0.7 1 0.45 99 0.8096 0.5903734
0.3 2 0.6 0.7 1 0.45 100 0.8096 0.5895973
0.3 2 0.6 0.7 1 0.45 101 0.8080 0.5859832
0.3 2 0.6 0.7 1 0.55 99 0.8000 0.5726832
0.3 2 0.6 0.7 1 0.55 100 0.8016 0.5755417
0.3 2 0.6 0.7 1 0.55 101 0.8016 0.5761515
0.3 2 0.6 0.7 2 0.45 99 0.8192 0.6111638
0.3 2 0.6 0.7 2 0.45 100 0.8240 0.6204912
0.3 2 0.6 0.7 2 0.45 101 0.8128 0.5987658
0.3 2 0.6 0.7 2 0.55 99 0.8128 0.5956023
0.3 2 0.6 0.7 2 0.55 100 0.8096 0.5894324
0.3 2 0.6 0.7 2 0.55 101 0.8160 0.6027735
0.3 3 0.1 0.5 1 0.45 99 0.8048 0.5839084
0.3 3 0.1 0.5 1 0.45 100 0.8112 0.5978148
0.3 3 0.1 0.5 1 0.45 101 0.8096 0.5960775
0.3 3 0.1 0.5 1 0.55 99 0.8096 0.5926541
0.3 3 0.1 0.5 1 0.55 100 0.8096 0.5950085
0.3 3 0.1 0.5 1 0.55 101 0.8128 0.6005444
0.3 3 0.1 0.5 2 0.45 99 0.8208 0.6162723
0.3 3 0.1 0.5 2 0.45 100 0.8080 0.5888067
0.3 3 0.1 0.5 2 0.45 101 0.8096 0.5919595
0.3 3 0.1 0.5 2 0.55 99 0.8144 0.6041075
0.3 3 0.1 0.5 2 0.55 100 0.8176 0.6115186
0.3 3 0.1 0.5 2 0.55 101 0.8160 0.6075260
0.3 3 0.1 0.6 1 0.45 99 0.8112 0.5932933
0.3 3 0.1 0.6 1 0.45 100 0.8144 0.5997478
0.3 3 0.1 0.6 1 0.45 101 0.8080 0.5858388
0.3 3 0.1 0.6 1 0.55 99 0.8160 0.6042108
0.3 3 0.1 0.6 1 0.55 100 0.8224 0.6173801
0.3 3 0.1 0.6 1 0.55 101 0.8208 0.6146349
0.3 3 0.1 0.6 2 0.45 99 0.8096 0.5937302
0.3 3 0.1 0.6 2 0.45 100 0.8064 0.5869546
0.3 3 0.1 0.6 2 0.45 101 0.8032 0.5790146
0.3 3 0.1 0.6 2 0.55 99 0.8208 0.6175102
0.3 3 0.1 0.6 2 0.55 100 0.8192 0.6143484
0.3 3 0.1 0.6 2 0.55 101 0.8208 0.6182049
0.3 3 0.1 0.7 1 0.45 99 0.8144 0.6017376
0.3 3 0.1 0.7 1 0.45 100 0.8096 0.5918062
0.3 3 0.1 0.7 1 0.45 101 0.8096 0.5915797
0.3 3 0.1 0.7 1 0.55 99 0.8048 0.5841298
0.3 3 0.1 0.7 1 0.55 100 0.8080 0.5911333
0.3 3 0.1 0.7 1 0.55 101 0.8032 0.5807817
0.3 3 0.1 0.7 2 0.45 99 0.8048 0.5795917
0.3 3 0.1 0.7 2 0.45 100 0.8048 0.5816915
0.3 3 0.1 0.7 2 0.45 101 0.8064 0.5855839
0.3 3 0.1 0.7 2 0.55 99 0.8064 0.5860909
0.3 3 0.1 0.7 2 0.55 100 0.8080 0.5893588
0.3 3 0.1 0.7 2 0.55 101 0.8080 0.5898876
0.3 3 0.6 0.5 1 0.45 99 0.8112 0.5979589
0.3 3 0.6 0.5 1 0.45 100 0.8112 0.5987583
0.3 3 0.6 0.5 1 0.45 101 0.8080 0.5910979
0.3 3 0.6 0.5 1 0.55 99 0.8016 0.5724942
0.3 3 0.6 0.5 1 0.55 100 0.8144 0.6017634
0.3 3 0.6 0.5 1 0.55 101 0.8112 0.5947893
0.3 3 0.6 0.5 2 0.45 99 0.8224 0.6170823
0.3 3 0.6 0.5 2 0.45 100 0.8272 0.6281251
0.3 3 0.6 0.5 2 0.45 101 0.8256 0.6256626
0.3 3 0.6 0.5 2 0.55 99 0.8144 0.6007998
0.3 3 0.6 0.5 2 0.55 100 0.8064 0.5833309
0.3 3 0.6 0.5 2 0.55 101 0.7984 0.5666751
0.3 3 0.6 0.6 1 0.45 99 0.8048 0.5810873
0.3 3 0.6 0.6 1 0.45 100 0.8080 0.5917270
0.3 3 0.6 0.6 1 0.45 101 0.8112 0.5953732
0.3 3 0.6 0.6 1 0.55 99 0.8032 0.5777434
0.3 3 0.6 0.6 1 0.55 100 0.8032 0.5800519
0.3 3 0.6 0.6 1 0.55 101 0.8048 0.5843351
0.3 3 0.6 0.6 2 0.45 99 0.8160 0.6065282
0.3 3 0.6 0.6 2 0.45 100 0.8208 0.6165114
0.3 3 0.6 0.6 2 0.45 101 0.8160 0.6058498
0.3 3 0.6 0.6 2 0.55 99 0.8048 0.5828182
0.3 3 0.6 0.6 2 0.55 100 0.8160 0.6055006
0.3 3 0.6 0.6 2 0.55 101 0.8080 0.5882109
0.3 3 0.6 0.7 1 0.45 99 0.8080 0.5888975
0.3 3 0.6 0.7 1 0.45 100 0.8016 0.5762706
0.3 3 0.6 0.7 1 0.45 101 0.8032 0.5794309
0.3 3 0.6 0.7 1 0.55 99 0.8048 0.5821583
0.3 3 0.6 0.7 1 0.55 100 0.8048 0.5811598
0.3 3 0.6 0.7 1 0.55 101 0.8112 0.5944848
0.3 3 0.6 0.7 2 0.45 99 0.8064 0.5824673
0.3 3 0.6 0.7 2 0.45 100 0.8096 0.5918120
0.3 3 0.6 0.7 2 0.45 101 0.8080 0.5913199
0.3 3 0.6 0.7 2 0.55 99 0.8080 0.5889894
0.3 3 0.6 0.7 2 0.55 100 0.8016 0.5747475
0.3 3 0.6 0.7 2 0.55 101 0.8048 0.5802493
0.4 1 0.1 0.5 1 0.45 99 0.7968 0.5648428
0.4 1 0.1 0.5 1 0.45 100 0.7968 0.5665363
0.4 1 0.1 0.5 1 0.45 101 0.8016 0.5755251
0.4 1 0.1 0.5 1 0.55 99 0.8000 0.5712934
0.4 1 0.1 0.5 1 0.55 100 0.7968 0.5633200
0.4 1 0.1 0.5 1 0.55 101 0.7984 0.5667448
0.4 1 0.1 0.5 2 0.45 99 0.8064 0.5874486
0.4 1 0.1 0.5 2 0.45 100 0.8112 0.5960756
0.4 1 0.1 0.5 2 0.45 101 0.8160 0.6047659
0.4 1 0.1 0.5 2 0.55 99 0.7888 0.5478920
0.4 1 0.1 0.5 2 0.55 100 0.7936 0.5580187
0.4 1 0.1 0.5 2 0.55 101 0.7888 0.5488473
0.4 1 0.1 0.6 1 0.45 99 0.7984 0.5661084
0.4 1 0.1 0.6 1 0.45 100 0.8032 0.5749515
0.4 1 0.1 0.6 1 0.45 101 0.7968 0.5617222
0.4 1 0.1 0.6 1 0.55 99 0.7984 0.5681274
0.4 1 0.1 0.6 1 0.55 100 0.8000 0.5734568
0.4 1 0.1 0.6 1 0.55 101 0.8032 0.5793127
0.4 1 0.1 0.6 2 0.45 99 0.7952 0.5575754
0.4 1 0.1 0.6 2 0.45 100 0.7856 0.5373404
0.4 1 0.1 0.6 2 0.45 101 0.7840 0.5339368
0.4 1 0.1 0.6 2 0.55 99 0.7888 0.5471573
0.4 1 0.1 0.6 2 0.55 100 0.7888 0.5465656
0.4 1 0.1 0.6 2 0.55 101 0.7904 0.5513458
0.4 1 0.1 0.7 1 0.45 99 0.7888 0.5451314
0.4 1 0.1 0.7 1 0.45 100 0.7888 0.5477034
0.4 1 0.1 0.7 1 0.45 101 0.7936 0.5564137
0.4 1 0.1 0.7 1 0.55 99 0.7888 0.5441428
0.4 1 0.1 0.7 1 0.55 100 0.7888 0.5430693
0.4 1 0.1 0.7 1 0.55 101 0.7952 0.5585235
0.4 1 0.1 0.7 2 0.45 99 0.8096 0.5879311
0.4 1 0.1 0.7 2 0.45 100 0.8080 0.5836482
0.4 1 0.1 0.7 2 0.45 101 0.8064 0.5812550
0.4 1 0.1 0.7 2 0.55 99 0.8048 0.5825363
0.4 1 0.1 0.7 2 0.55 100 0.8096 0.5932939
0.4 1 0.1 0.7 2 0.55 101 0.8112 0.5960429
0.4 1 0.6 0.5 1 0.45 99 0.8032 0.5791064
0.4 1 0.6 0.5 1 0.45 100 0.8064 0.5855774
0.4 1 0.6 0.5 1 0.45 101 0.8000 0.5717159
0.4 1 0.6 0.5 1 0.55 99 0.8016 0.5710198
0.4 1 0.6 0.5 1 0.55 100 0.7920 0.5480072
0.4 1 0.6 0.5 1 0.55 101 0.7920 0.5502826
0.4 1 0.6 0.5 2 0.45 99 0.7936 0.5640744
0.4 1 0.6 0.5 2 0.45 100 0.7968 0.5681072
0.4 1 0.6 0.5 2 0.45 101 0.7968 0.5704825
0.4 1 0.6 0.5 2 0.55 99 0.8096 0.5930286
0.4 1 0.6 0.5 2 0.55 100 0.8080 0.5897734
0.4 1 0.6 0.5 2 0.55 101 0.8064 0.5879978
0.4 1 0.6 0.6 1 0.45 99 0.8064 0.5861577
0.4 1 0.6 0.6 1 0.45 100 0.8048 0.5815993
0.4 1 0.6 0.6 1 0.45 101 0.7984 0.5657947
0.4 1 0.6 0.6 1 0.55 99 0.7968 0.5624708
0.4 1 0.6 0.6 1 0.55 100 0.7984 0.5658045
0.4 1 0.6 0.6 1 0.55 101 0.7936 0.5576578
0.4 1 0.6 0.6 2 0.45 99 0.8032 0.5763327
0.4 1 0.6 0.6 2 0.45 100 0.7968 0.5628419
0.4 1 0.6 0.6 2 0.45 101 0.7936 0.5553905
0.4 1 0.6 0.6 2 0.55 99 0.8112 0.5930763
0.4 1 0.6 0.6 2 0.55 100 0.8048 0.5764562
0.4 1 0.6 0.6 2 0.55 101 0.8080 0.5844435
0.4 1 0.6 0.7 1 0.45 99 0.7872 0.5397521
0.4 1 0.6 0.7 1 0.45 100 0.7872 0.5404324
0.4 1 0.6 0.7 1 0.45 101 0.7936 0.5536214
0.4 1 0.6 0.7 1 0.55 99 0.7936 0.5583798
0.4 1 0.6 0.7 1 0.55 100 0.7920 0.5563395
0.4 1 0.6 0.7 1 0.55 101 0.8000 0.5725743
0.4 1 0.6 0.7 2 0.45 99 0.8048 0.5785592
0.4 1 0.6 0.7 2 0.45 100 0.8000 0.5696905
0.4 1 0.6 0.7 2 0.45 101 0.8000 0.5692470
0.4 1 0.6 0.7 2 0.55 99 0.8032 0.5770293
0.4 1 0.6 0.7 2 0.55 100 0.7984 0.5663165
0.4 1 0.6 0.7 2 0.55 101 0.8000 0.5709361
0.4 2 0.1 0.5 1 0.45 99 0.8144 0.5982400
0.4 2 0.1 0.5 1 0.45 100 0.8208 0.6150196
0.4 2 0.1 0.5 1 0.45 101 0.8256 0.6255417
0.4 2 0.1 0.5 1 0.55 99 0.8240 0.6220474
0.4 2 0.1 0.5 1 0.55 100 0.8256 0.6249393
0.4 2 0.1 0.5 1 0.55 101 0.8224 0.6173992
0.4 2 0.1 0.5 2 0.45 99 0.8208 0.6127408
0.4 2 0.1 0.5 2 0.45 100 0.8160 0.6039160
0.4 2 0.1 0.5 2 0.45 101 0.8096 0.5890128
0.4 2 0.1 0.5 2 0.55 99 0.8048 0.5773155
0.4 2 0.1 0.5 2 0.55 100 0.8208 0.6129043
0.4 2 0.1 0.5 2 0.55 101 0.8160 0.6023447
0.4 2 0.1 0.6 1 0.45 99 0.8080 0.5899733
0.4 2 0.1 0.6 1 0.45 100 0.8048 0.5817091
0.4 2 0.1 0.6 1 0.45 101 0.8016 0.5742258
0.4 2 0.1 0.6 1 0.55 99 0.8144 0.6012797
0.4 2 0.1 0.6 1 0.55 100 0.8192 0.6116334
0.4 2 0.1 0.6 1 0.55 101 0.8128 0.5997723
0.4 2 0.1 0.6 2 0.45 99 0.8096 0.5919074
0.4 2 0.1 0.6 2 0.45 100 0.8112 0.5950910
0.4 2 0.1 0.6 2 0.45 101 0.8128 0.5988078
0.4 2 0.1 0.6 2 0.55 99 0.8032 0.5767340
0.4 2 0.1 0.6 2 0.55 100 0.8096 0.5904993
0.4 2 0.1 0.6 2 0.55 101 0.8128 0.5967108
0.4 2 0.1 0.7 1 0.45 99 0.7984 0.5715282
0.4 2 0.1 0.7 1 0.45 100 0.7936 0.5603396
0.4 2 0.1 0.7 1 0.45 101 0.8000 0.5733208
0.4 2 0.1 0.7 1 0.55 99 0.8080 0.5900799
0.4 2 0.1 0.7 1 0.55 100 0.8032 0.5788321
0.4 2 0.1 0.7 1 0.55 101 0.8048 0.5818428
0.4 2 0.1 0.7 2 0.45 99 0.7936 0.5570264
0.4 2 0.1 0.7 2 0.45 100 0.7968 0.5604493
0.4 2 0.1 0.7 2 0.45 101 0.7952 0.5579014
0.4 2 0.1 0.7 2 0.55 99 0.8112 0.5972013
0.4 2 0.1 0.7 2 0.55 100 0.8096 0.5934287
0.4 2 0.1 0.7 2 0.55 101 0.8032 0.5803223
0.4 2 0.6 0.5 1 0.45 99 0.7888 0.5469905
0.4 2 0.6 0.5 1 0.45 100 0.7872 0.5441030
0.4 2 0.6 0.5 1 0.45 101 0.7904 0.5501000
0.4 2 0.6 0.5 1 0.55 99 0.8112 0.5916252
0.4 2 0.6 0.5 1 0.55 100 0.8128 0.5968697
0.4 2 0.6 0.5 1 0.55 101 0.8112 0.5917534
0.4 2 0.6 0.5 2 0.45 99 0.8032 0.5797886
0.4 2 0.6 0.5 2 0.45 100 0.8160 0.6050679
0.4 2 0.6 0.5 2 0.45 101 0.8112 0.5937308
0.4 2 0.6 0.5 2 0.55 99 0.8144 0.6012854
0.4 2 0.6 0.5 2 0.55 100 0.8144 0.5998335
0.4 2 0.6 0.5 2 0.55 101 0.8112 0.5938388
0.4 2 0.6 0.6 1 0.45 99 0.8000 0.5725380
0.4 2 0.6 0.6 1 0.45 100 0.8048 0.5831854
0.4 2 0.6 0.6 1 0.45 101 0.8048 0.5830149
0.4 2 0.6 0.6 1 0.55 99 0.8032 0.5765950
0.4 2 0.6 0.6 1 0.55 100 0.7968 0.5649878
0.4 2 0.6 0.6 1 0.55 101 0.8000 0.5707581
0.4 2 0.6 0.6 2 0.45 99 0.8144 0.5992945
0.4 2 0.6 0.6 2 0.45 100 0.8112 0.5918309
0.4 2 0.6 0.6 2 0.45 101 0.8128 0.5972461
0.4 2 0.6 0.6 2 0.55 99 0.8048 0.5762582
0.4 2 0.6 0.6 2 0.55 100 0.8144 0.5979076
0.4 2 0.6 0.6 2 0.55 101 0.8224 0.6136496
0.4 2 0.6 0.7 1 0.45 99 0.8128 0.5978036
0.4 2 0.6 0.7 1 0.45 100 0.7984 0.5679823
0.4 2 0.6 0.7 1 0.45 101 0.8016 0.5727478
0.4 2 0.6 0.7 1 0.55 99 0.8160 0.6089290
0.4 2 0.6 0.7 1 0.55 100 0.8160 0.6083179
0.4 2 0.6 0.7 1 0.55 101 0.8064 0.5864786
0.4 2 0.6 0.7 2 0.45 99 0.8080 0.5879538
0.4 2 0.6 0.7 2 0.45 100 0.8160 0.6046354
0.4 2 0.6 0.7 2 0.45 101 0.8144 0.6030495
0.4 2 0.6 0.7 2 0.55 99 0.8256 0.6236890
0.4 2 0.6 0.7 2 0.55 100 0.8256 0.6254991
0.4 2 0.6 0.7 2 0.55 101 0.8304 0.6359992
0.4 3 0.1 0.5 1 0.45 99 0.8000 0.5739537
0.4 3 0.1 0.5 1 0.45 100 0.7952 0.5667440
0.4 3 0.1 0.5 1 0.45 101 0.8048 0.5855250
0.4 3 0.1 0.5 1 0.55 99 0.8144 0.6046439
0.4 3 0.1 0.5 1 0.55 100 0.8128 0.6012938
0.4 3 0.1 0.5 1 0.55 101 0.8064 0.5870635
0.4 3 0.1 0.5 2 0.45 99 0.8224 0.6157011
0.4 3 0.1 0.5 2 0.45 100 0.8192 0.6088574
0.4 3 0.1 0.5 2 0.45 101 0.8256 0.6234331
0.4 3 0.1 0.5 2 0.55 99 0.8112 0.5966845
0.4 3 0.1 0.5 2 0.55 100 0.8032 0.5825946
0.4 3 0.1 0.5 2 0.55 101 0.8080 0.5945848
0.4 3 0.1 0.6 1 0.45 99 0.7984 0.5700555
0.4 3 0.1 0.6 1 0.45 100 0.7984 0.5691527
0.4 3 0.1 0.6 1 0.45 101 0.7984 0.5711980
0.4 3 0.1 0.6 1 0.55 99 0.7936 0.5576469
0.4 3 0.1 0.6 1 0.55 100 0.7984 0.5700712
0.4 3 0.1 0.6 1 0.55 101 0.7984 0.5697263
0.4 3 0.1 0.6 2 0.45 99 0.7952 0.5613850
0.4 3 0.1 0.6 2 0.45 100 0.7984 0.5695710
0.4 3 0.1 0.6 2 0.45 101 0.8080 0.5884539
0.4 3 0.1 0.6 2 0.55 99 0.8000 0.5756429
0.4 3 0.1 0.6 2 0.55 100 0.7920 0.5581939
0.4 3 0.1 0.6 2 0.55 101 0.7952 0.5640903
0.4 3 0.1 0.7 1 0.45 99 0.8080 0.5867722
0.4 3 0.1 0.7 1 0.45 100 0.8096 0.5901813
0.4 3 0.1 0.7 1 0.45 101 0.8080 0.5894819
0.4 3 0.1 0.7 1 0.55 99 0.7952 0.5616378
0.4 3 0.1 0.7 1 0.55 100 0.7984 0.5702454
0.4 3 0.1 0.7 1 0.55 101 0.7984 0.5692306
0.4 3 0.1 0.7 2 0.45 99 0.8192 0.6144148
0.4 3 0.1 0.7 2 0.45 100 0.8144 0.6045889
0.4 3 0.1 0.7 2 0.45 101 0.8176 0.6116084
0.4 3 0.1 0.7 2 0.55 99 0.8016 0.5733535
0.4 3 0.1 0.7 2 0.55 100 0.7968 0.5634136
0.4 3 0.1 0.7 2 0.55 101 0.7984 0.5674154
0.4 3 0.6 0.5 1 0.45 99 0.7920 0.5543971
0.4 3 0.6 0.5 1 0.45 100 0.7920 0.5539615
0.4 3 0.6 0.5 1 0.45 101 0.8064 0.5862700
0.4 3 0.6 0.5 1 0.55 99 0.7984 0.5698990
0.4 3 0.6 0.5 1 0.55 100 0.7968 0.5668926
0.4 3 0.6 0.5 1 0.55 101 0.8000 0.5728400
0.4 3 0.6 0.5 2 0.45 99 0.8080 0.5864349
0.4 3 0.6 0.5 2 0.45 100 0.8048 0.5801866
0.4 3 0.6 0.5 2 0.45 101 0.7920 0.5536591
0.4 3 0.6 0.5 2 0.55 99 0.8000 0.5712036
0.4 3 0.6 0.5 2 0.55 100 0.8080 0.5865977
0.4 3 0.6 0.5 2 0.55 101 0.8064 0.5840325
0.4 3 0.6 0.6 1 0.45 99 0.7904 0.5543360
0.4 3 0.6 0.6 1 0.45 100 0.7888 0.5471223
0.4 3 0.6 0.6 1 0.45 101 0.8016 0.5767752
0.4 3 0.6 0.6 1 0.55 99 0.8000 0.5701150
0.4 3 0.6 0.6 1 0.55 100 0.7968 0.5624274
0.4 3 0.6 0.6 1 0.55 101 0.7984 0.5650349
0.4 3 0.6 0.6 2 0.45 99 0.7984 0.5649638
0.4 3 0.6 0.6 2 0.45 100 0.7936 0.5564593
0.4 3 0.6 0.6 2 0.45 101 0.8000 0.5711640
0.4 3 0.6 0.6 2 0.55 99 0.8048 0.5835703
0.4 3 0.6 0.6 2 0.55 100 0.8144 0.6044045
0.4 3 0.6 0.6 2 0.55 101 0.8096 0.5950353
0.4 3 0.6 0.7 1 0.45 99 0.8016 0.5772039
0.4 3 0.6 0.7 1 0.45 100 0.8048 0.5851602
0.4 3 0.6 0.7 1 0.45 101 0.7936 0.5619635
0.4 3 0.6 0.7 1 0.55 99 0.8064 0.5895548
0.4 3 0.6 0.7 1 0.55 100 0.8096 0.5966714
0.4 3 0.6 0.7 1 0.55 101 0.8096 0.5970981
0.4 3 0.6 0.7 2 0.45 99 0.8000 0.5720680
0.4 3 0.6 0.7 2 0.45 100 0.7952 0.5613857
0.4 3 0.6 0.7 2 0.45 101 0.8000 0.5705116
0.4 3 0.6 0.7 2 0.55 99 0.8000 0.5739845
0.4 3 0.6 0.7 2 0.55 100 0.7936 0.5613344
0.4 3 0.6 0.7 2 0.55 101 0.7968 0.5670451
0.5 1 0.1 0.5 1 0.45 99 0.8032 0.5763495
0.5 1 0.1 0.5 1 0.45 100 0.7936 0.5551323
0.5 1 0.1 0.5 1 0.45 101 0.7840 0.5338263
0.5 1 0.1 0.5 1 0.55 99 0.7968 0.5661053
0.5 1 0.1 0.5 1 0.55 100 0.7968 0.5662083
0.5 1 0.1 0.5 1 0.55 101 0.8048 0.5832938
0.5 1 0.1 0.5 2 0.45 99 0.7936 0.5567226
0.5 1 0.1 0.5 2 0.45 100 0.7952 0.5629058
0.5 1 0.1 0.5 2 0.45 101 0.7968 0.5654417
0.5 1 0.1 0.5 2 0.55 99 0.8064 0.5850504
0.5 1 0.1 0.5 2 0.55 100 0.8080 0.5890217
0.5 1 0.1 0.5 2 0.55 101 0.7984 0.5692429
0.5 1 0.1 0.6 1 0.45 99 0.7968 0.5628308
0.5 1 0.1 0.6 1 0.45 100 0.7968 0.5635390
0.5 1 0.1 0.6 1 0.45 101 0.7904 0.5492666
0.5 1 0.1 0.6 1 0.55 99 0.8064 0.5848651
0.5 1 0.1 0.6 1 0.55 100 0.8096 0.5908818
0.5 1 0.1 0.6 1 0.55 101 0.8096 0.5909583
0.5 1 0.1 0.6 2 0.45 99 0.8144 0.5998746
0.5 1 0.1 0.6 2 0.45 100 0.8112 0.5942978
0.5 1 0.1 0.6 2 0.45 101 0.8128 0.5990446
0.5 1 0.1 0.6 2 0.55 99 0.7904 0.5435422
0.5 1 0.1 0.6 2 0.55 100 0.7936 0.5547012
0.5 1 0.1 0.6 2 0.55 101 0.7952 0.5572543
0.5 1 0.1 0.7 1 0.45 99 0.8048 0.5867834
0.5 1 0.1 0.7 1 0.45 100 0.8032 0.5816360
0.5 1 0.1 0.7 1 0.45 101 0.8032 0.5814908
0.5 1 0.1 0.7 1 0.55 99 0.7856 0.5393567
0.5 1 0.1 0.7 1 0.55 100 0.7792 0.5255469
0.5 1 0.1 0.7 1 0.55 101 0.7808 0.5293043
0.5 1 0.1 0.7 2 0.45 99 0.8128 0.5976354
0.5 1 0.1 0.7 2 0.45 100 0.8144 0.5986222
0.5 1 0.1 0.7 2 0.45 101 0.8144 0.6011537
0.5 1 0.1 0.7 2 0.55 99 0.8032 0.5783321
0.5 1 0.1 0.7 2 0.55 100 0.7968 0.5642749
0.5 1 0.1 0.7 2 0.55 101 0.7952 0.5634869
0.5 1 0.6 0.5 1 0.45 99 0.8000 0.5725969
0.5 1 0.6 0.5 1 0.45 100 0.8000 0.5744279
0.5 1 0.6 0.5 1 0.45 101 0.8032 0.5826629
0.5 1 0.6 0.5 1 0.55 99 0.7840 0.5400600
0.5 1 0.6 0.5 1 0.55 100 0.7888 0.5497872
0.5 1 0.6 0.5 1 0.55 101 0.7872 0.5444276
0.5 1 0.6 0.5 2 0.45 99 0.7984 0.5672880
0.5 1 0.6 0.5 2 0.45 100 0.7968 0.5626342
0.5 1 0.6 0.5 2 0.45 101 0.8000 0.5714996
0.5 1 0.6 0.5 2 0.55 99 0.7920 0.5531878
0.5 1 0.6 0.5 2 0.55 100 0.7984 0.5700373
0.5 1 0.6 0.5 2 0.55 101 0.7904 0.5533853
0.5 1 0.6 0.6 1 0.45 99 0.8000 0.5698651
0.5 1 0.6 0.6 1 0.45 100 0.7872 0.5435998
0.5 1 0.6 0.6 1 0.45 101 0.8064 0.5832235
0.5 1 0.6 0.6 1 0.55 99 0.7968 0.5675827
0.5 1 0.6 0.6 1 0.55 100 0.8000 0.5731900
0.5 1 0.6 0.6 1 0.55 101 0.8016 0.5752530
0.5 1 0.6 0.6 2 0.45 99 0.8048 0.5859595
0.5 1 0.6 0.6 2 0.45 100 0.8048 0.5871449
0.5 1 0.6 0.6 2 0.45 101 0.8080 0.5920804
0.5 1 0.6 0.6 2 0.55 99 0.8096 0.5921209
0.5 1 0.6 0.6 2 0.55 100 0.8064 0.5822818
0.5 1 0.6 0.6 2 0.55 101 0.8080 0.5858828
0.5 1 0.6 0.7 1 0.45 99 0.7920 0.5532564
0.5 1 0.6 0.7 1 0.45 100 0.7952 0.5614666
0.5 1 0.6 0.7 1 0.45 101 0.8000 0.5733456
0.5 1 0.6 0.7 1 0.55 99 0.8192 0.6140360
0.5 1 0.6 0.7 1 0.55 100 0.8144 0.6036613
0.5 1 0.6 0.7 1 0.55 101 0.8192 0.6146661
0.5 1 0.6 0.7 2 0.45 99 0.8048 0.5786991
0.5 1 0.6 0.7 2 0.45 100 0.8080 0.5849150
0.5 1 0.6 0.7 2 0.45 101 0.7952 0.5598728
0.5 1 0.6 0.7 2 0.55 99 0.8016 0.5749519
0.5 1 0.6 0.7 2 0.55 100 0.7968 0.5653279
0.5 1 0.6 0.7 2 0.55 101 0.7968 0.5645514
0.5 2 0.1 0.5 1 0.45 99 0.8128 0.5989748
0.5 2 0.1 0.5 1 0.45 100 0.8096 0.5935491
0.5 2 0.1 0.5 1 0.45 101 0.8144 0.6031455
0.5 2 0.1 0.5 1 0.55 99 0.8144 0.6027193
0.5 2 0.1 0.5 1 0.55 100 0.8064 0.5853639
0.5 2 0.1 0.5 1 0.55 101 0.8112 0.5950285
0.5 2 0.1 0.5 2 0.45 99 0.8048 0.5845094
0.5 2 0.1 0.5 2 0.45 100 0.7984 0.5713613
0.5 2 0.1 0.5 2 0.45 101 0.8096 0.5956802
0.5 2 0.1 0.5 2 0.55 99 0.8048 0.5799867
0.5 2 0.1 0.5 2 0.55 100 0.8048 0.5800400
0.5 2 0.1 0.5 2 0.55 101 0.8032 0.5769708
0.5 2 0.1 0.6 1 0.45 99 0.7968 0.5632408
0.5 2 0.1 0.6 1 0.45 100 0.8016 0.5732302
0.5 2 0.1 0.6 1 0.45 101 0.8096 0.5909158
0.5 2 0.1 0.6 1 0.55 99 0.7968 0.5649963
0.5 2 0.1 0.6 1 0.55 100 0.8032 0.5814555
0.5 2 0.1 0.6 1 0.55 101 0.8096 0.5939723
0.5 2 0.1 0.6 2 0.45 99 0.8000 0.5687592
0.5 2 0.1 0.6 2 0.45 100 0.8000 0.5683392
0.5 2 0.1 0.6 2 0.45 101 0.8032 0.5736847
0.5 2 0.1 0.6 2 0.55 99 0.8176 0.6083516
0.5 2 0.1 0.6 2 0.55 100 0.8176 0.6090571
0.5 2 0.1 0.6 2 0.55 101 0.8192 0.6131141
0.5 2 0.1 0.7 1 0.45 99 0.8080 0.5868709
0.5 2 0.1 0.7 1 0.45 100 0.8032 0.5758353
0.5 2 0.1 0.7 1 0.45 101 0.8032 0.5771500
0.5 2 0.1 0.7 1 0.55 99 0.8048 0.5822481
0.5 2 0.1 0.7 1 0.55 100 0.8032 0.5804910
0.5 2 0.1 0.7 1 0.55 101 0.8000 0.5730032
0.5 2 0.1 0.7 2 0.45 99 0.7984 0.5707673
0.5 2 0.1 0.7 2 0.45 100 0.7952 0.5629595
0.5 2 0.1 0.7 2 0.45 101 0.7920 0.5529894
0.5 2 0.1 0.7 2 0.55 99 0.8080 0.5901246
0.5 2 0.1 0.7 2 0.55 100 0.8064 0.5860440
0.5 2 0.1 0.7 2 0.55 101 0.8000 0.5730932
0.5 2 0.6 0.5 1 0.45 99 0.7968 0.5673774
0.5 2 0.6 0.5 1 0.45 100 0.7968 0.5681916
0.5 2 0.6 0.5 1 0.45 101 0.7984 0.5725797
0.5 2 0.6 0.5 1 0.55 99 0.7952 0.5640566
0.5 2 0.6 0.5 1 0.55 100 0.7936 0.5585354
0.5 2 0.6 0.5 1 0.55 101 0.7888 0.5467925
0.5 2 0.6 0.5 2 0.45 99 0.7936 0.5542431
0.5 2 0.6 0.5 2 0.45 100 0.7952 0.5608133
0.5 2 0.6 0.5 2 0.45 101 0.7952 0.5575078
0.5 2 0.6 0.5 2 0.55 99 0.8160 0.6039908
0.5 2 0.6 0.5 2 0.55 100 0.8096 0.5920139
0.5 2 0.6 0.5 2 0.55 101 0.8208 0.6171648
0.5 2 0.6 0.6 1 0.45 99 0.8112 0.5949845
0.5 2 0.6 0.6 1 0.45 100 0.8000 0.5693836
0.5 2 0.6 0.6 1 0.45 101 0.8064 0.5845865
0.5 2 0.6 0.6 1 0.55 99 0.8016 0.5750297
0.5 2 0.6 0.6 1 0.55 100 0.8000 0.5733590
0.5 2 0.6 0.6 1 0.55 101 0.8032 0.5804208
0.5 2 0.6 0.6 2 0.45 99 0.8032 0.5786274
0.5 2 0.6 0.6 2 0.45 100 0.8096 0.5930928
0.5 2 0.6 0.6 2 0.45 101 0.8096 0.5933705
0.5 2 0.6 0.6 2 0.55 99 0.8000 0.5716383
0.5 2 0.6 0.6 2 0.55 100 0.7968 0.5658482
0.5 2 0.6 0.6 2 0.55 101 0.7952 0.5640643
0.5 2 0.6 0.7 1 0.45 99 0.7952 0.5666841
0.5 2 0.6 0.7 1 0.45 100 0.7936 0.5628605
0.5 2 0.6 0.7 1 0.45 101 0.7888 0.5512151
0.5 2 0.6 0.7 1 0.55 99 0.8064 0.5841222
0.5 2 0.6 0.7 1 0.55 100 0.8096 0.5910420
0.5 2 0.6 0.7 1 0.55 101 0.8032 0.5792084
0.5 2 0.6 0.7 2 0.45 99 0.8160 0.6048872
0.5 2 0.6 0.7 2 0.45 100 0.8144 0.5980613
0.5 2 0.6 0.7 2 0.45 101 0.8176 0.6065533
0.5 2 0.6 0.7 2 0.55 99 0.8176 0.6101146
0.5 2 0.6 0.7 2 0.55 100 0.8048 0.5840427
0.5 2 0.6 0.7 2 0.55 101 0.8080 0.5914939
0.5 3 0.1 0.5 1 0.45 99 0.8128 0.5978386
0.5 3 0.1 0.5 1 0.45 100 0.8160 0.6035074
0.5 3 0.1 0.5 1 0.45 101 0.8224 0.6181951
0.5 3 0.1 0.5 1 0.55 99 0.7888 0.5512073
0.5 3 0.1 0.5 1 0.55 100 0.7888 0.5504228
0.5 3 0.1 0.5 1 0.55 101 0.7872 0.5471532
0.5 3 0.1 0.5 2 0.45 99 0.8064 0.5876166
0.5 3 0.1 0.5 2 0.45 100 0.8160 0.6055529
0.5 3 0.1 0.5 2 0.45 101 0.8080 0.5872798
0.5 3 0.1 0.5 2 0.55 99 0.7936 0.5607528
0.5 3 0.1 0.5 2 0.55 100 0.7984 0.5723670
0.5 3 0.1 0.5 2 0.55 101 0.7888 0.5500899
0.5 3 0.1 0.6 1 0.45 99 0.8016 0.5758417
0.5 3 0.1 0.6 1 0.45 100 0.8032 0.5784385
0.5 3 0.1 0.6 1 0.45 101 0.8000 0.5717967
0.5 3 0.1 0.6 1 0.55 99 0.8064 0.5873364
0.5 3 0.1 0.6 1 0.55 100 0.7984 0.5706933
0.5 3 0.1 0.6 1 0.55 101 0.7984 0.5695325
0.5 3 0.1 0.6 2 0.45 99 0.7952 0.5638030
0.5 3 0.1 0.6 2 0.45 100 0.8032 0.5799274
0.5 3 0.1 0.6 2 0.45 101 0.8016 0.5775043
0.5 3 0.1 0.6 2 0.55 99 0.8000 0.5715343
0.5 3 0.1 0.6 2 0.55 100 0.8000 0.5710062
0.5 3 0.1 0.6 2 0.55 101 0.7936 0.5599672
0.5 3 0.1 0.7 1 0.45 99 0.7920 0.5584895
0.5 3 0.1 0.7 1 0.45 100 0.7904 0.5534373
0.5 3 0.1 0.7 1 0.45 101 0.7888 0.5496257
0.5 3 0.1 0.7 1 0.55 99 0.8080 0.5961297
0.5 3 0.1 0.7 1 0.55 100 0.8128 0.6040817
0.5 3 0.1 0.7 1 0.55 101 0.8128 0.6031082
0.5 3 0.1 0.7 2 0.45 99 0.7952 0.5607323
0.5 3 0.1 0.7 2 0.45 100 0.8016 0.5749702
0.5 3 0.1 0.7 2 0.45 101 0.7936 0.5572030
0.5 3 0.1 0.7 2 0.55 99 0.8080 0.5865582
0.5 3 0.1 0.7 2 0.55 100 0.8112 0.5932810
0.5 3 0.1 0.7 2 0.55 101 0.8144 0.5996192
0.5 3 0.6 0.5 1 0.45 99 0.8048 0.5821933
0.5 3 0.6 0.5 1 0.45 100 0.8000 0.5697399
0.5 3 0.6 0.5 1 0.45 101 0.8064 0.5828413
0.5 3 0.6 0.5 1 0.55 99 0.8096 0.5928874
0.5 3 0.6 0.5 1 0.55 100 0.8128 0.6006056
0.5 3 0.6 0.5 1 0.55 101 0.8096 0.5915135
0.5 3 0.6 0.5 2 0.45 99 0.8048 0.5814272
0.5 3 0.6 0.5 2 0.45 100 0.8016 0.5748128
0.5 3 0.6 0.5 2 0.45 101 0.8096 0.5905967
0.5 3 0.6 0.5 2 0.55 99 0.8000 0.5719155
0.5 3 0.6 0.5 2 0.55 100 0.8048 0.5844191
0.5 3 0.6 0.5 2 0.55 101 0.8016 0.5773891
0.5 3 0.6 0.6 1 0.45 99 0.7904 0.5521494
0.5 3 0.6 0.6 1 0.45 100 0.7984 0.5687816
0.5 3 0.6 0.6 1 0.45 101 0.8048 0.5799408
0.5 3 0.6 0.6 1 0.55 99 0.7952 0.5695903
0.5 3 0.6 0.6 1 0.55 100 0.8016 0.5817920
0.5 3 0.6 0.6 1 0.55 101 0.8000 0.5775279
0.5 3 0.6 0.6 2 0.45 99 0.7968 0.5603817
0.5 3 0.6 0.6 2 0.45 100 0.7968 0.5612484
0.5 3 0.6 0.6 2 0.45 101 0.7936 0.5558168
0.5 3 0.6 0.6 2 0.55 99 0.8096 0.5919859
0.5 3 0.6 0.6 2 0.55 100 0.8144 0.6024666
0.5 3 0.6 0.6 2 0.55 101 0.8128 0.5991701
0.5 3 0.6 0.7 1 0.45 99 0.7968 0.5695434
0.5 3 0.6 0.7 1 0.45 100 0.7936 0.5622803
0.5 3 0.6 0.7 1 0.45 101 0.8016 0.5788004
0.5 3 0.6 0.7 1 0.55 99 0.7984 0.5742120
0.5 3 0.6 0.7 1 0.55 100 0.7968 0.5697453
0.5 3 0.6 0.7 1 0.55 101 0.7968 0.5705984
0.5 3 0.6 0.7 2 0.45 99 0.8032 0.5769559
0.5 3 0.6 0.7 2 0.45 100 0.8064 0.5854369
0.5 3 0.6 0.7 2 0.45 101 0.7984 0.5684251
0.5 3 0.6 0.7 2 0.55 99 0.8144 0.6060192
0.5 3 0.6 0.7 2 0.55 100 0.8128 0.6012620
0.5 3 0.6 0.7 2 0.55 101 0.8096 0.5951375
Accuracy was used to select the optimal model using the largest value.
The final values used for the model were nrounds = 101, max_depth = 2, eta = 0.4, gamma = 0.6, colsample_bytree = 0.7, min_child_weight = 2 and subsample = 0.55.xgb.tune.fit$bestTune # 최적의 초모수 조합값 nrounds max_depth eta gamma colsample_bytree min_child_weight subsample
360 101 2 0.4 0.6 0.7 2 0.55Result! (eta = 0.4, max_depth = 2, gamma = 0.6, colsample_bytree = 0.7, min_child_weight = 2, subsample = 0.55, nrounds = 101)일 때 정확도가 가장 높은 것을 알 수 있으며, (eta = 0.4, max_depth = 2, gamma = 0.6, colsample_bytree = 0.7, min_child_weight = 2, subsample = 0.55, nrounds = 101)를 가지는 모형을 최적의 훈련된 모형으로 선택한다.
# 변수 중요도
importance <- xgboost::xgb.importance(model = xgb.tune.fit$finalModel)
importance Feature Gain Cover Frequency
<char> <num> <num> <num>
1: Fare 0.32508276 0.39859069 0.40370370
2: Age 0.24472964 0.31555757 0.31851852
3: Sexmale 0.22943973 0.09741137 0.08888889
4: FamSize 0.10861218 0.09341485 0.10740741
5: Pclass3 0.07158805 0.05498747 0.04444444

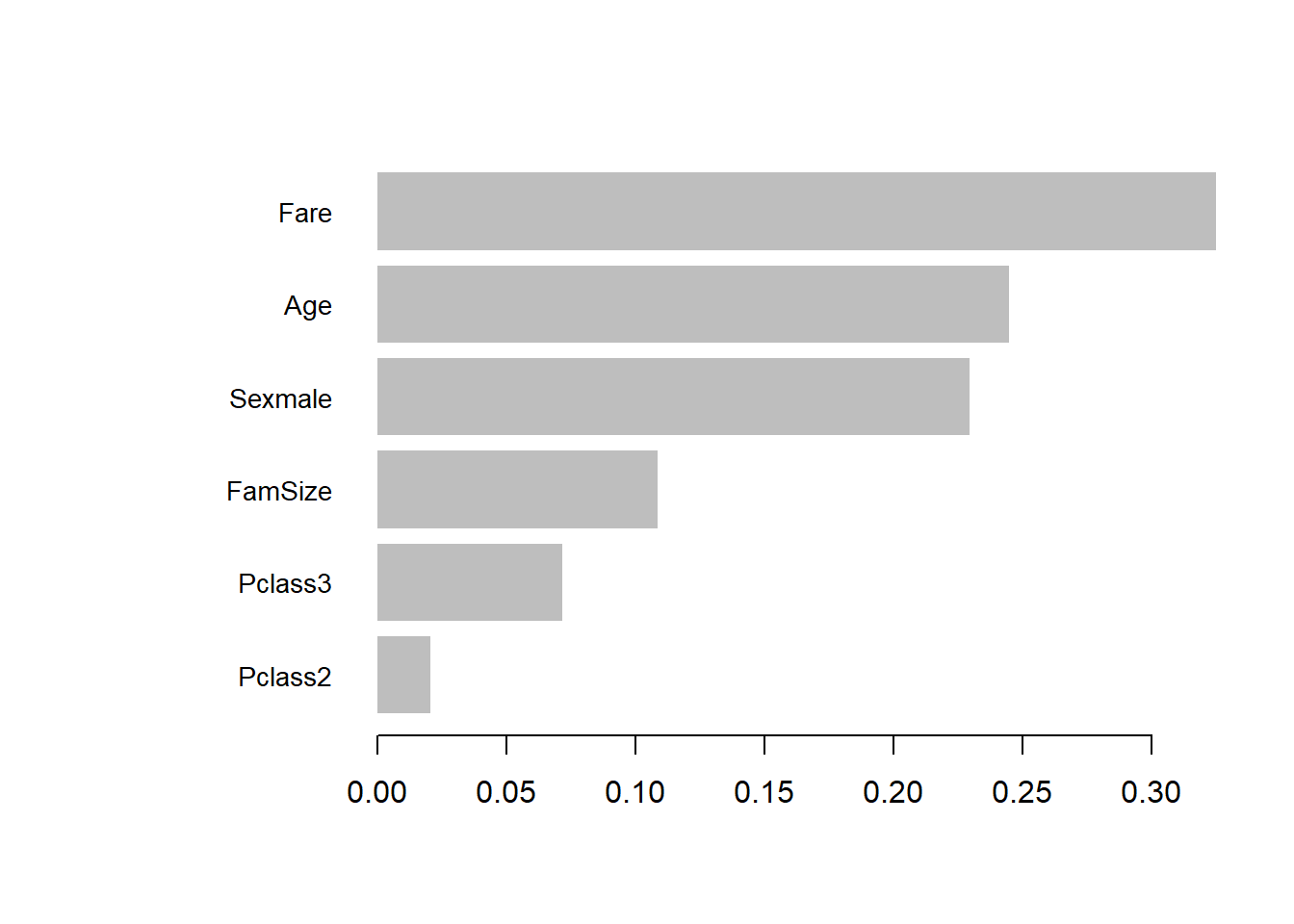

6: Pclass2 0.02054765 0.04003806 0.03703704# 변수 중요도 plot
xgboost::xgb.plot.importance(importance_matrix = importance)
Result! 변수 Fare이 Target Survived을 분류하는 데 있어 중요하다.
13.7 모형 평가
Caution! 모형 평가를 위해 Test Dataset에 대한 예측 class/확률 이 필요하며, 함수 predict()를 이용하여 생성한다.
# 예측 class 생성
test.xgb.class <- predict(xgb.tune.fit,
newdata = titanic.ted.Imp[,-1]) # Test Dataset including Only 예측 변수
test.xgb.class [1] yes no no yes no no yes no no yes no no yes yes no yes no no yes no no no no no no no no no yes no yes no no no no no no no no yes no no no yes no no no no
[49] yes no no no no no no yes no no no yes no no yes no yes no no no no no no no no yes no no no no no no yes no yes no no no no no no no no no no yes yes yes
[97] no yes no no no yes yes no yes yes no yes no yes yes no yes no yes no yes no no no yes no no yes no yes no yes no yes no yes no no yes yes no no no no yes no no no
[145] yes no no no no no no yes no no no no no no no no yes no yes yes no yes yes no no no no no yes yes yes no yes no no no no no no yes no no no yes no yes no no
[193] no no no no no yes no no no no no no no no no no yes no no yes yes no no no yes yes no no no no no yes yes yes no no no no no no no no yes no no yes no no
[241] no yes no yes no yes no yes no no yes no no no no yes yes yes no yes no yes yes no no no
Levels: no yes13.7.1 ConfusionMatrix
CM <- caret::confusionMatrix(test.xgb.class, titanic.ted.Imp$Survived,
positive = "yes") # confusionMatrix(예측 class, 실제 class, positive = "관심 class")
CMConfusion Matrix and Statistics
Reference
Prediction no yes
no 153 34
yes 11 68
Accuracy : 0.8308
95% CI : (0.7803, 0.8738)
No Information Rate : 0.6165
P-Value [Acc > NIR] : 2.211e-14
Kappa : 0.6263
Mcnemar's Test P-Value : 0.00104
Sensitivity : 0.6667
Specificity : 0.9329
Pos Pred Value : 0.8608
Neg Pred Value : 0.8182
Prevalence : 0.3835
Detection Rate : 0.2556
Detection Prevalence : 0.2970
Balanced Accuracy : 0.7998
'Positive' Class : yes
13.7.2 ROC 곡선
# 예측 확률 생성
test.xgb.prob <- predict(xgb.tune.fit,
newdata = titanic.ted.Imp[,-1], # Test Dataset including Only 예측 변수
type = "prob") # 예측 확률 생성
test.xgb.prob %>%
as_tibble# A tibble: 266 × 2
no yes
<dbl> <dbl>
1 0.0600 0.940
2 0.757 0.243
3 0.960 0.0397
4 0.172 0.828
5 0.642 0.358
6 0.860 0.140
7 0.453 0.547
8 0.978 0.0223
9 0.957 0.0431
10 0.0349 0.965
# ℹ 256 more rowstest.xgb.prob <- test.xgb.prob[,2] # "Survived = yes"에 대한 예측 확률
ac <- titanic.ted.Imp$Survived # Test Dataset의 실제 class
pp <- as.numeric(test.xgb.prob) # 예측 확률을 수치형으로 변환13.7.2.1 Package “pROC”

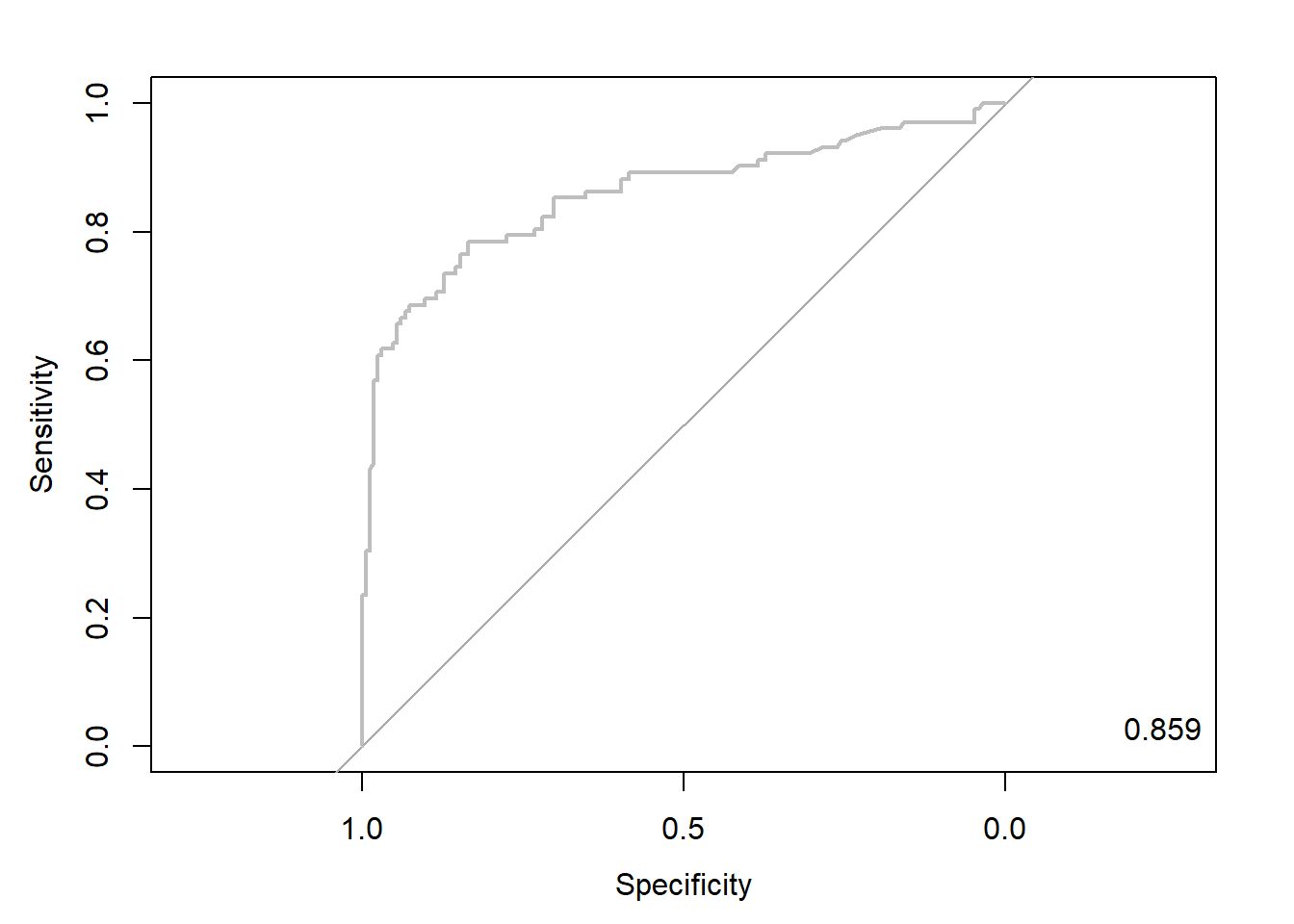

pacman::p_load("pROC")
xgb.roc <- roc(ac, pp, plot = T, col = "gray") # roc(실제 class, 예측 확률)
auc <- round(auc(xgb.roc), 3)
legend("bottomright", legend = auc, bty = "n")
Caution! Package "pROC"를 통해 출력한 ROC 곡선은 다양한 함수를 이용해서 그래프를 수정할 수 있다.

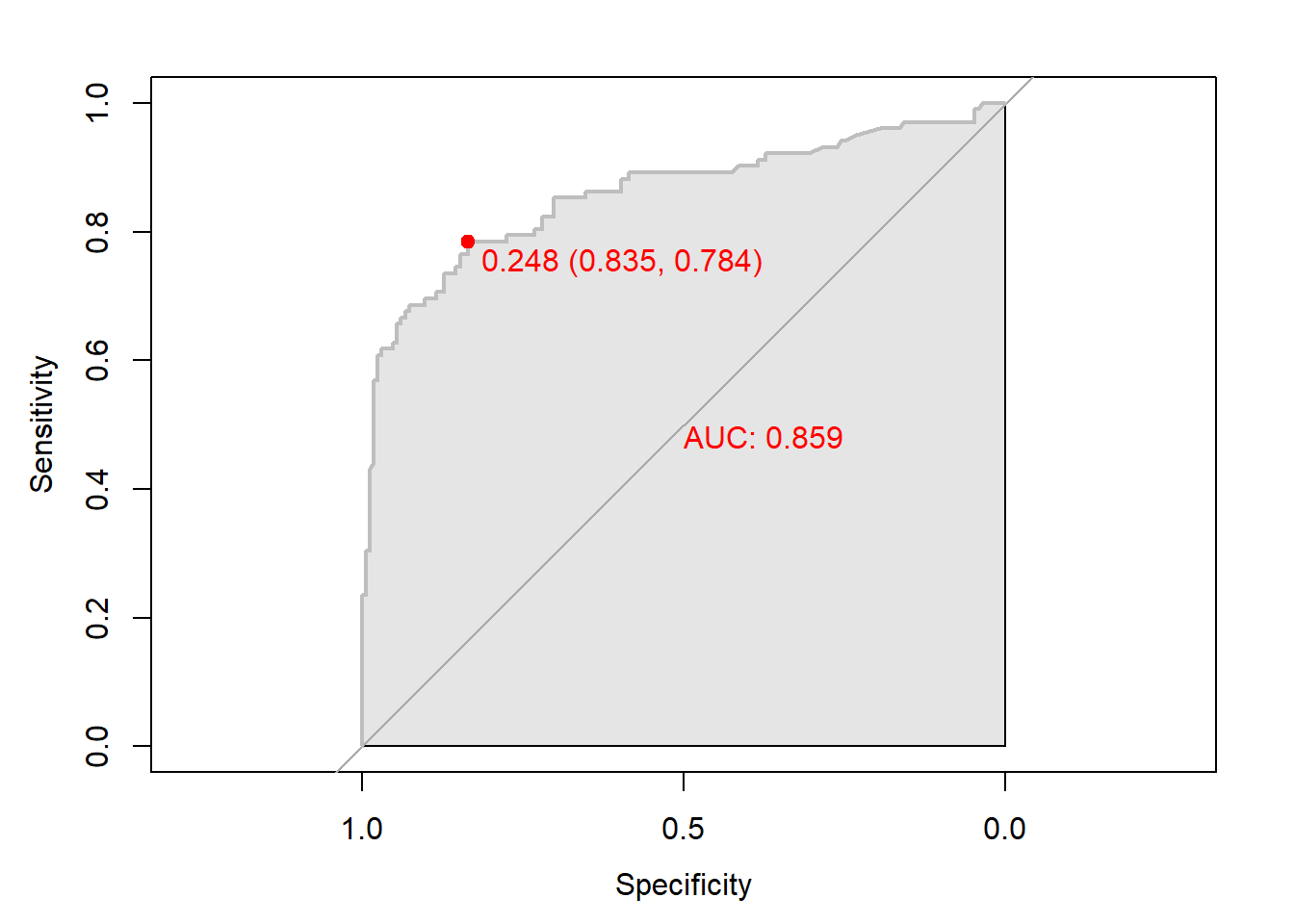

# 함수 plot.roc() 이용
plot.roc(xgb.roc,
col="gray", # Line Color
print.auc = TRUE, # AUC 출력 여부
print.auc.col = "red", # AUC 글씨 색깔
print.thres = TRUE, # Cutoff Value 출력 여부
print.thres.pch = 19, # Cutoff Value를 표시하는 도형 모양
print.thres.col = "red", # Cutoff Value를 표시하는 도형의 색깔
auc.polygon = TRUE, # 곡선 아래 면적에 대한 여부
auc.polygon.col = "gray90") # 곡선 아래 면적의 색깔

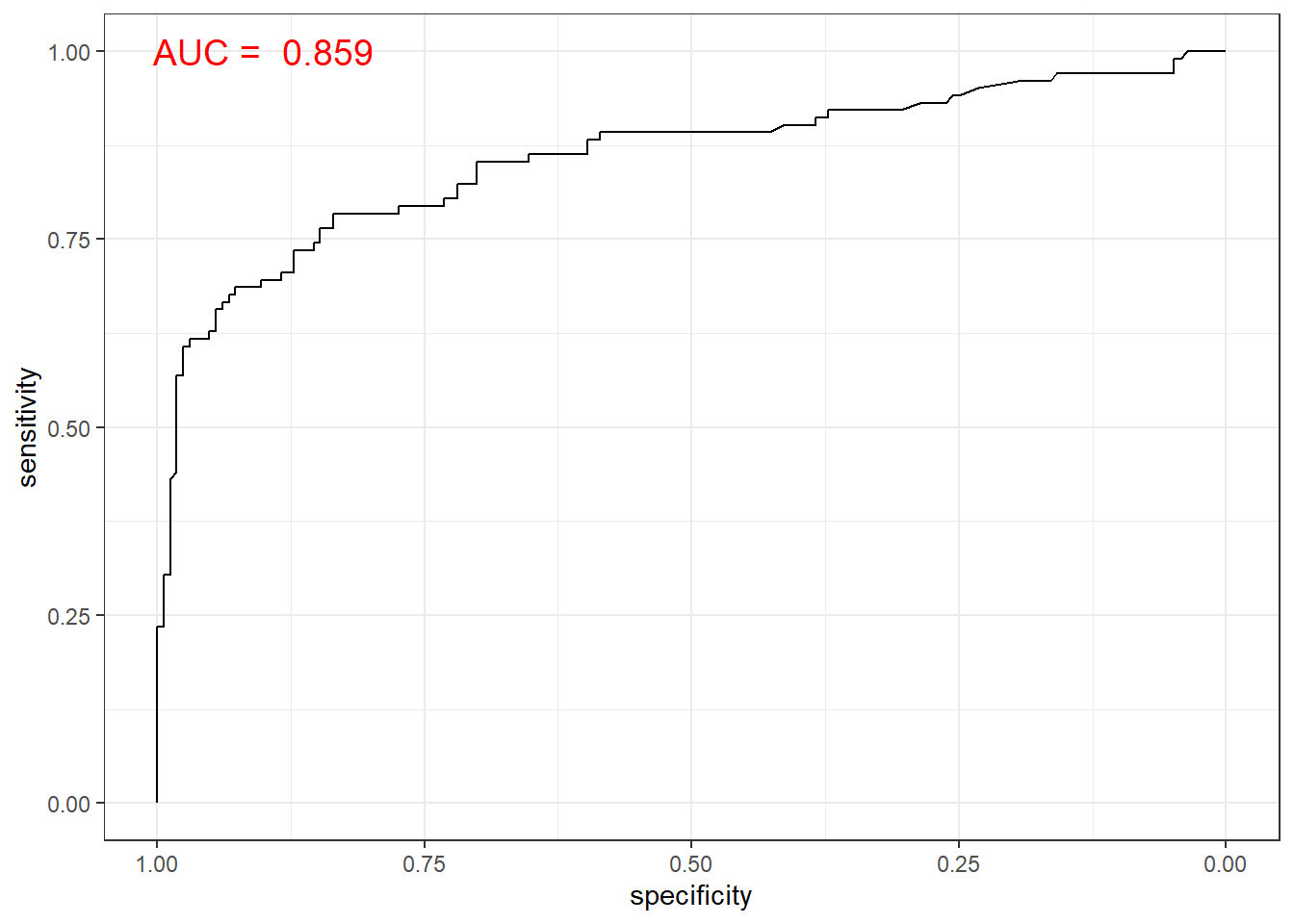

# 함수 ggroc() 이용
ggroc(xgb.roc) +
annotate(geom = "text", x = 0.9, y = 1.0,
label = paste("AUC = ", auc),
size = 5,
color="red") +
theme_bw()

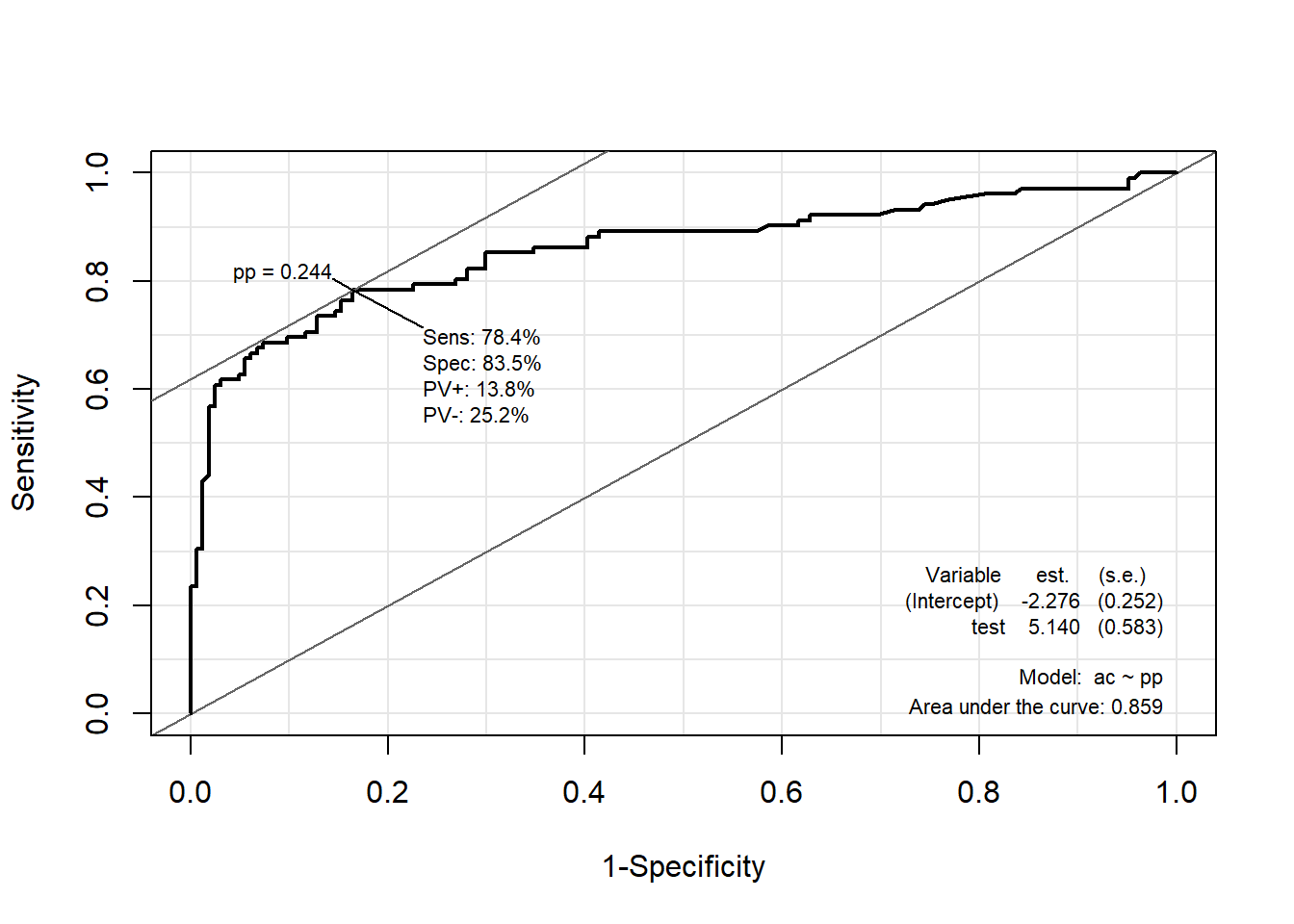

13.7.2.2 Package “Epi”
pacman::p_load("Epi")
# install_version("etm", version = "1.1", repos = "http://cran.us.r-project.org")
ROC(pp, ac, plot = "ROC") # ROC(예측 확률, 실제 class)

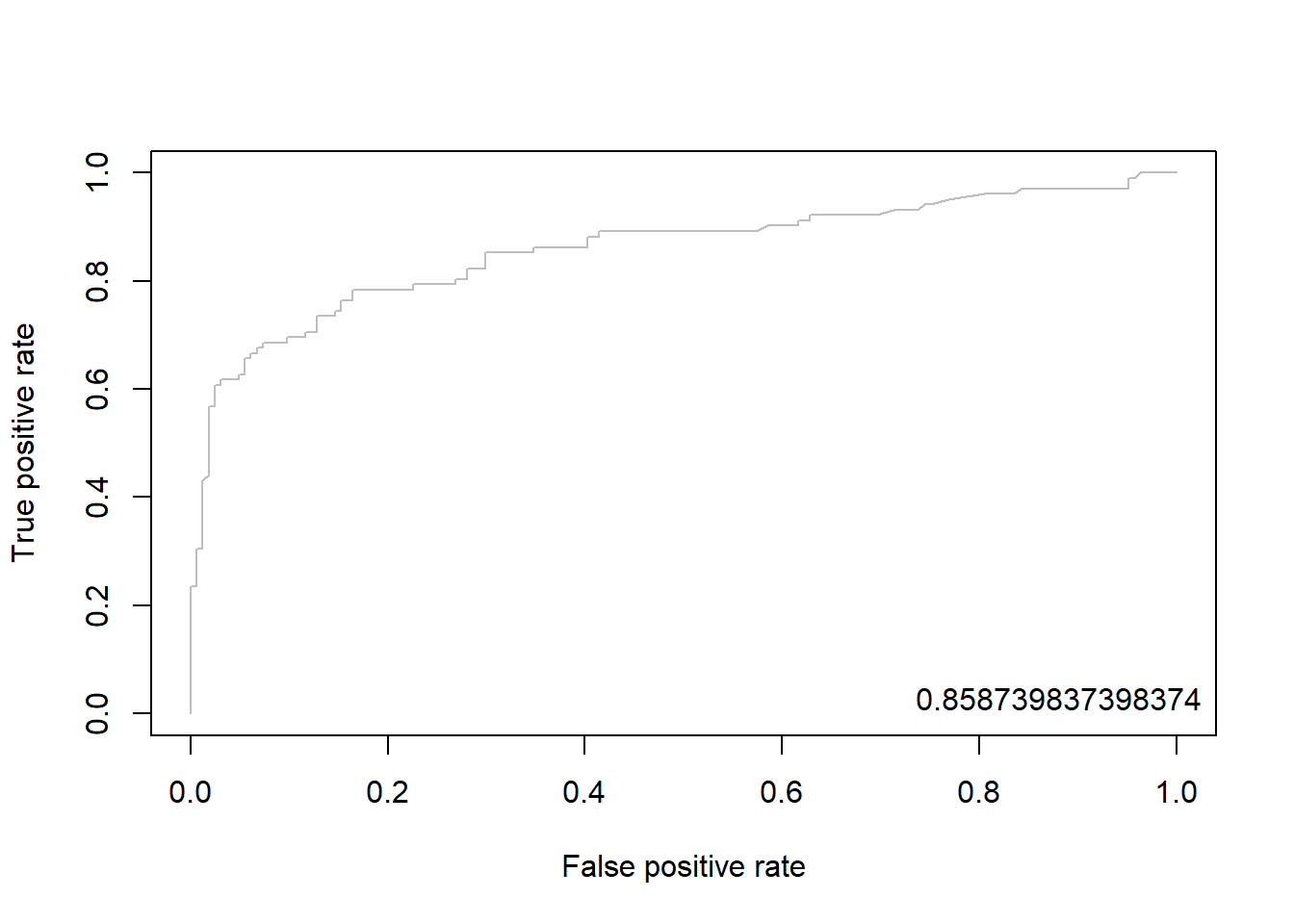

13.7.2.3 Package “ROCR”
pacman::p_load("ROCR")
xgb.pred <- prediction(pp, ac) # prediction(예측 확률, 실제 class)
xgb.perf <- performance(xgb.pred, "tpr", "fpr") # performance(, "민감도", "1-특이도")
plot(xgb.perf, col = "gray") # ROC Curve
perf.auc <- performance(xgb.pred, "auc") # AUC
auc <- attributes(perf.auc)$y.values
legend("bottomright", legend = auc, bty = "n")

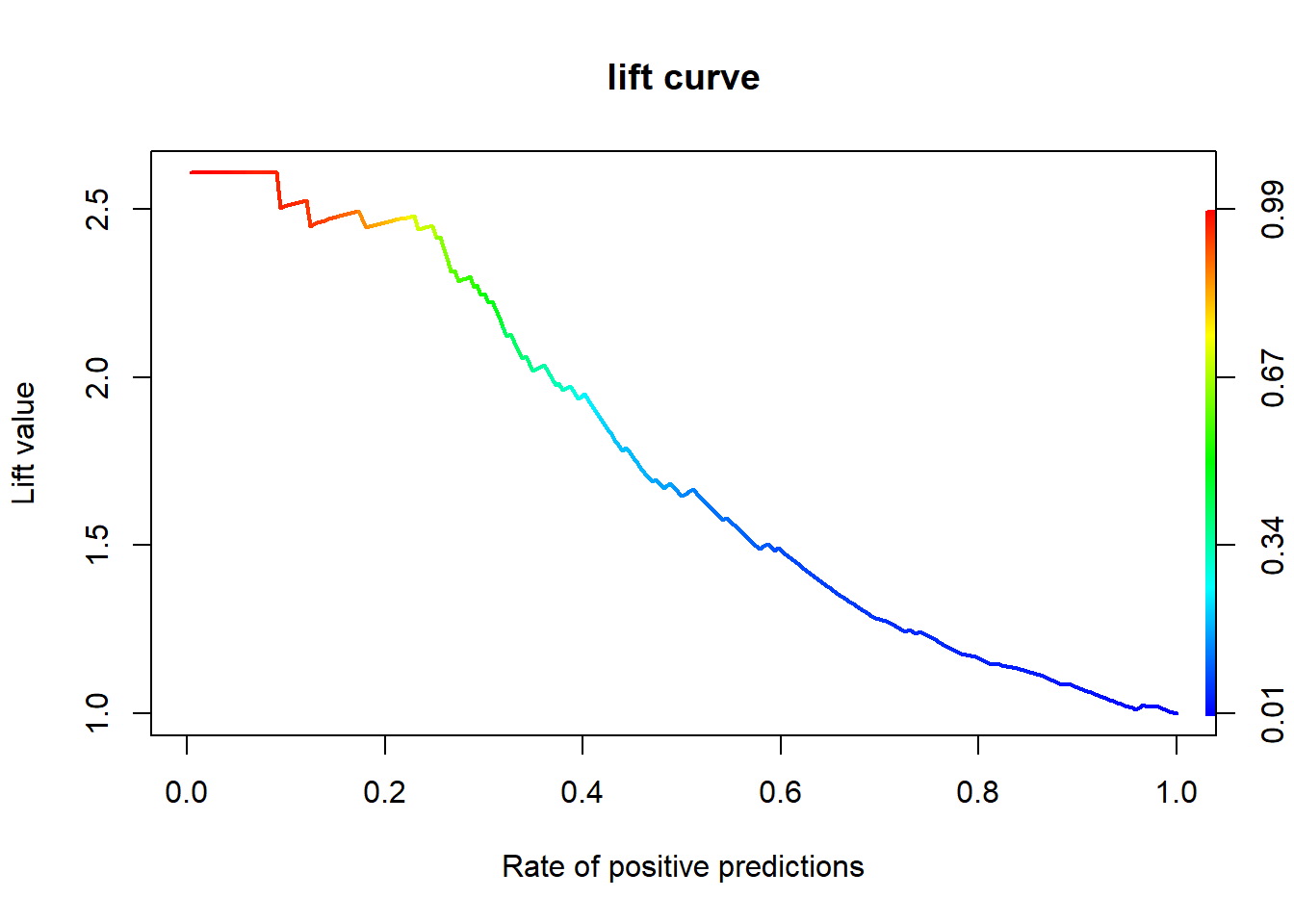

13.7.3 향상 차트
13.7.3.1 Package “ROCR”
xgb.perf <- performance(xgb.pred, "lift", "rpp") # Lift Chart
plot(xgb.perf, main = "lift curve",
colorize = T, # Coloring according to cutoff
lwd = 2)
